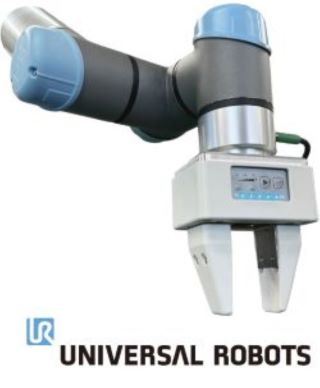

  • ELCT1-100-20-NEWR
    特征
    • This product is electric gripper installing controller.
    • It memorizes operation stroke every open/close, and decelerates right before the last stopping position.
    • It enables setting with three stages of gripping force and open/close speed by URCap soft or control panel of body.
    连接电缆
    /连接器
    300mm Shield wire / M8 connector
    (UReseries For tool connector joint)
    通讯接口RS-485 、Digital I/0 (2 points for each)
    夹持力3 stage setting
    1:60N 2:80N 3:100N
    反复夹持精度±0.01mm 供电电压DC24V±10%
    操作时间3 stage setting
    1:1.8s 2:1.2s 3:0.9s
    行程20mm(One side 10mm) 减速行程(时间)1mm(0.2s)
    杠杆后冲量One side 0.2mm 使用温度范围5~50℃
    (No dew condensation)
    产品重量1.35kg
    分解 Gripper body(without finger):860g
    Finger(Including mounting part):140g(2 pcs)
    Body cover:110g
    Adaptor Plate(Including mounting part):240g
    Finger cover(Including mounting part):140g(2 pcs)
    其他 About ipl files for plugin
    Download the URCaps from our website and save the unzipped file to a USB memory that can be used with the UR e series.
