Compound Unit / Tool Unit

• Swivel Gripper/NEOK

  Feature	Air gripper with swivel joint High rigidity/high accuracy gripper "HP04R" can be freely rotated.

  Application	Gripping+Free Rotation	Cylinder Bore[mm]	8，12，16，20
  Stroke	4〜14	Thrust	6.6〜50N
  Product Mass[g]	80g～
  Provided CAD data	NEOK-8/12/16/20



  Catalog PDF

  Product Introduction Movie

  Example Movie of Use

• Swivel Gripper/NEOKF

  Feature	Air gripper finger type with swivel joint High rigidity/high accuracy gripper "HP04R" can be freely rotated.

  Application	Gripping+Free Rotation	Cylinder Bore[mm]	8，12，16，20
  Stroke	4〜14	Thrust	6.6〜50N
  Product Mass[g]	85g～
  Provided CAD data	NEOKF-8/12/16/20



  Catalog PDF

  Example Movie of Use

• Swivel Gripper/NEOKT

  Feature	Now Released!! Parallel Three Finger Gripper With Swivel Joint High rigidity/high accuracy gripper "HP15" can be freely rotated.

  Application	Gripping+Free Rotation	Cylinder Bore[mm]	16，20
  Stroke	6，10	Thrust	20〜35.5N
  Product Mass[g]	340g～
  Provided CAD data	NEOKT-16/20



  Catalog PDF

  Product Introduction Movie

• Swivel Gripper/NEOKS

  Feature	Table Type of NEOKS Free Rotation + Vacuum, or can be used as Rotary Joint Case is common with ＮＥＯＫ(２ finger) / ＮＥＯＫＴ(３ finger), Changable each other

  Application	Vacuum + Free Rotation	Cylinder Bore[mm]	8，12，16
  Stroke	-	Thrust	-N
  Product Mass[g]	70〜g～
  Provided CAD data	NEOKS-8/12/16



  Catalog PDF

• Swivel Gripper/NEOKP

  Feature	Air gripper with swivel joint High rigidity gripper "HP03E" can be freely rotated.

  Application	Gripping+Free Rotation	Cylinder Bore[mm]	12，16，20，25
  Stroke	4‾14	Thrust	16‾67N
  Product Mass[g]	145‾g～
  Provided CAD data	NEOKP-12/16/20/25



  Catalog PDF

• Swivel Gripper/NEOKO

  Feature	Air gripper with swivel joint 180 open/close gripper “HV02E” can be freely rotated.

  Application	Gripping+Free Rotation	Cylinder Bore[mm]	12，16，20，25
  Stroke	180°	Thrust	6.7‾73N
  Product Mass[g]	140‾g～
  Provided CAD data	NEOKO-12/16/20/25



  Catalog PDF

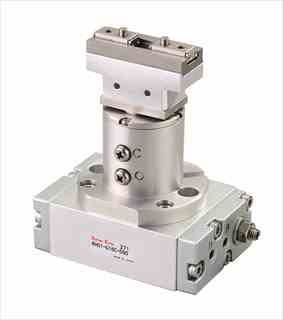

• Rotary Gripper/RH01

  Feature	Rotary gripper Parallel gripper / fulcrum open, close

  Application	Gripping+Rotation	Cylinder Bore[mm]	16，20
  Stroke	Paralle：8〜14，V type：30〜180	Thrust	12〜45N
  Product Mass[g]	714g～
  Provided CAD data	RH01-G/O/P/V



  Catalog PDF

  Mechanism Explanation Movie

• Pico Positioner/PXY

  Feature	Pico Positioner Light and soft sliding with cross linear guide and locking after

  Application	Error absorbtion	Cylinder Bore[mm]	12，20
  Stroke	1，2，3	Thrust	76〜175N
  Product Mass[g]	130g～
  Provided CAD data	PXY-12/20



  Catalog PDF

  Product Introduction Movie

• Pico Positioner/PXYQ

  Feature	Pico Positioner New function of θ direction rotation installed. Light and soft sliding with cross linear guide and locking after by air.

  Application	X-Y+θerror absorbing	Cylinder Bore[mm]	X-Y：12 θ：20 equate
  Stroke	2(X-Y),　±3.4°(θ)	Thrust	76N
  Product Mass[g]	255g～
  Provided CAD data	PXYQ-12



  Catalog PDF

  Product Introduction Movie

• Mini Swing/CZL

  Feature	Mini Swing High accuracy actuator can be freely rotated by external force.

  Application	Linear Motion+Free Rotation	Cylinder Bore[mm]	25，32
  Stroke	25，50，75，100，150	Thrust	250〜400N
  Product Mass[g]	600g～
  Provided CAD data	CZL-25/32



  Catalog PDF

• Linear Twist/CTW

  Feature	Linear Twist High accurate reciprocation, and rotation are achieved with 1 piece.

  Application	Linear Motion+Rotation	Cylinder Bore[mm]	25，32
  Stroke	25，50，75，100	Thrust	240〜390N
  Product Mass[g]	760g～
  Provided CAD data	CTW-25/32



  Catalog PDF

• Linear Twist/CTX

  Feature	Linear Twist with Stroke Adjusment High accurate reciprocation, and rotation are achieved with 1 piece.

  Application	Linear Motion+Rotation	Cylinder Bore[mm]	25，32
  Stroke	25，50，75，100	Thrust	240〜390N
  Product Mass[g]	850g～
  Provided CAD data	CTX-25/32



  Catalog PDF

• Pico Synchro/PST

  Feature	Pico Synchro Parallely located two guide tables can be synchronized.

  Application	Escapement/Gripping	Cylinder Bore[mm]	6
  Stroke	5，10	Thrust	3.4〜8.8N
  Product Mass[g]	70g～
  Provided CAD data	PST-6



  Catalog PDF

• One Shaft High Accurate Actuator/DNPT

  Feature	One shaft high accurate actuator Ball screw is installed on compact linear guide.

  Application	Electric Cylinder/Precise Positioning	Cylinder Bore[mm]	12，16
  Stroke	25，25	Thrust	-N
  Product Mass[g]	380g～
  Provided CAD data	DNPT-12/16



  Catalog PDF

  Example Movie of Use
