DDS-208
Slim and compact body (Thickness:37mm)
Control signal voltage converting circuit: 3lines
Illumination / Parking brake / Reverse etc.
Powerful continuous output (back-up output)
Interlock output with ACC (key switch)
High conversion efficiency by switching system
Control signal voltage converting circuit: 3lines
Illumination / Parking brake / Reverse etc.
Powerful continuous output (back-up output)
Interlock output with ACC (key switch)
High conversion efficiency by switching system
Click To Enlarge Image
Product Specification
| Model | DDS-208 |
|---|---|
| Rated input voltage | DC24V(DC20V～DC32V) |
| Rated Output (12V MAIN/ACC) |
DC13.5V±1V Total:8A |
| Rated Output (12V Control OUT A～C) |
DC13.0V±1V Total:50mA |
| No-load current | ACC ON:Approx. 45mA ACC OFF:less than 5mA |
| Conversion efficiency | approx. 90% |
| Protection circuit | Protection against reverse input connection Protection against output over current (Drooping characteristic) Protection against input output reverse connection |
| Operating temp. range | -20℃～60℃ |
| Leaving temp. range | -40℃～85℃ |
| Anti-vibration | 67Hz 7G Ydirection:4hours(up and down) / XZdirection:2hours(the others) |
| Circuit mode | Switching (PWM) system (noninsulation) |
| Product dimensions | 148(W)×37(H)×129(D)mm |
| Product weight | 600g |
| Input-output terminal | Specific cable （attached） |

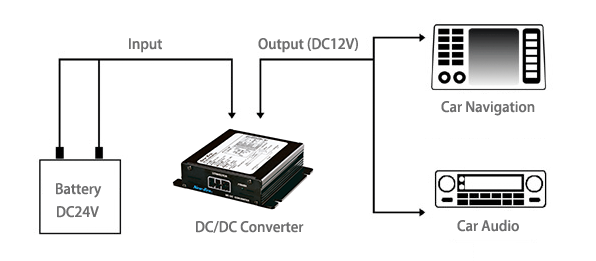

Product Details
