Cylinder with High Precision Linear Guide

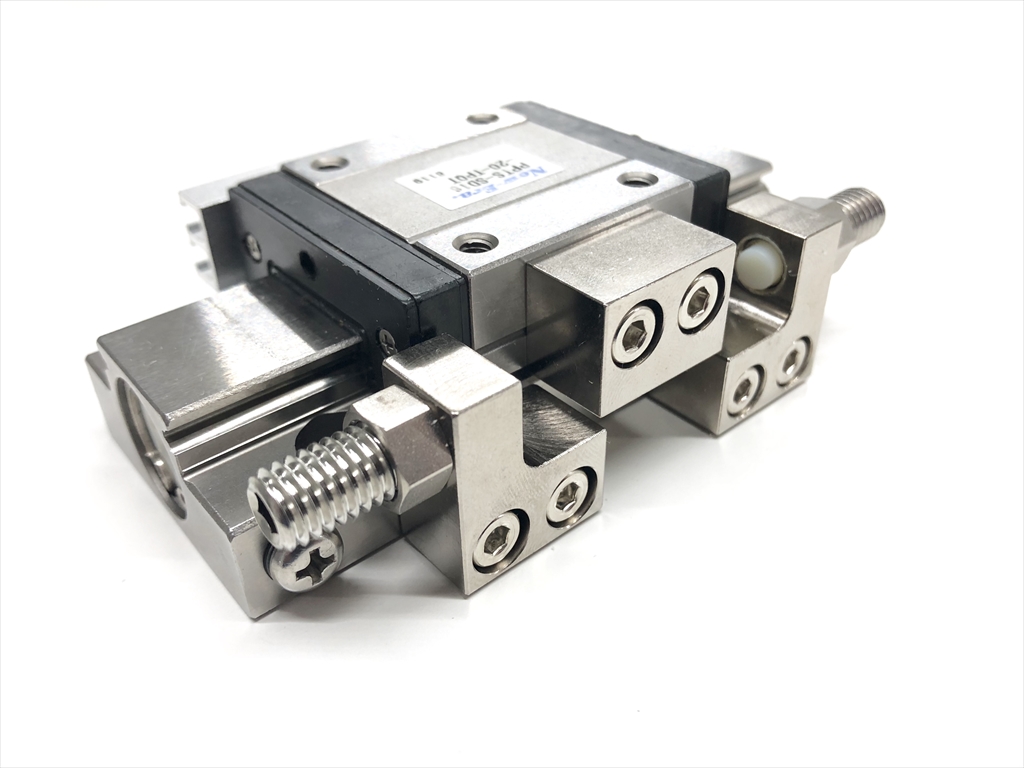

  • Pico Table/PPT
    Feature
    • Linear guide integrated cylinder
    • Various options can be selected, like stroke adjustment.
    TypeLinear guide
    Operating TypeDouble Acting Cylinder Bore[mm]4,6,8,10,12,16,20mm
    Stroke5〜40mm Extrusion Force6.3〜157N
    Loading Work Piece Mass0.05〜5kg Operating Temperatura Range[°]5〜60゜
    SwitchAvailable Cylinder Type-
  • Pico Table with Floating/PPTF
    Feature
    • Linear guide integrated cylinder
    • Various options can be selected, like stroke adjustment.
    • Floating mechanizm installed
    TypeLinear guide
    Operating TypeDouble Acting Cylinder Bore[mm]8,10,12,16mm
    Stroke10〜30mm Extrusion Force21〜92N
    Loading Work Piece Mass0.25〜2kg Operating Temperatura Range[°]5〜60゜
    SwitchAvailable Cylinder Type-

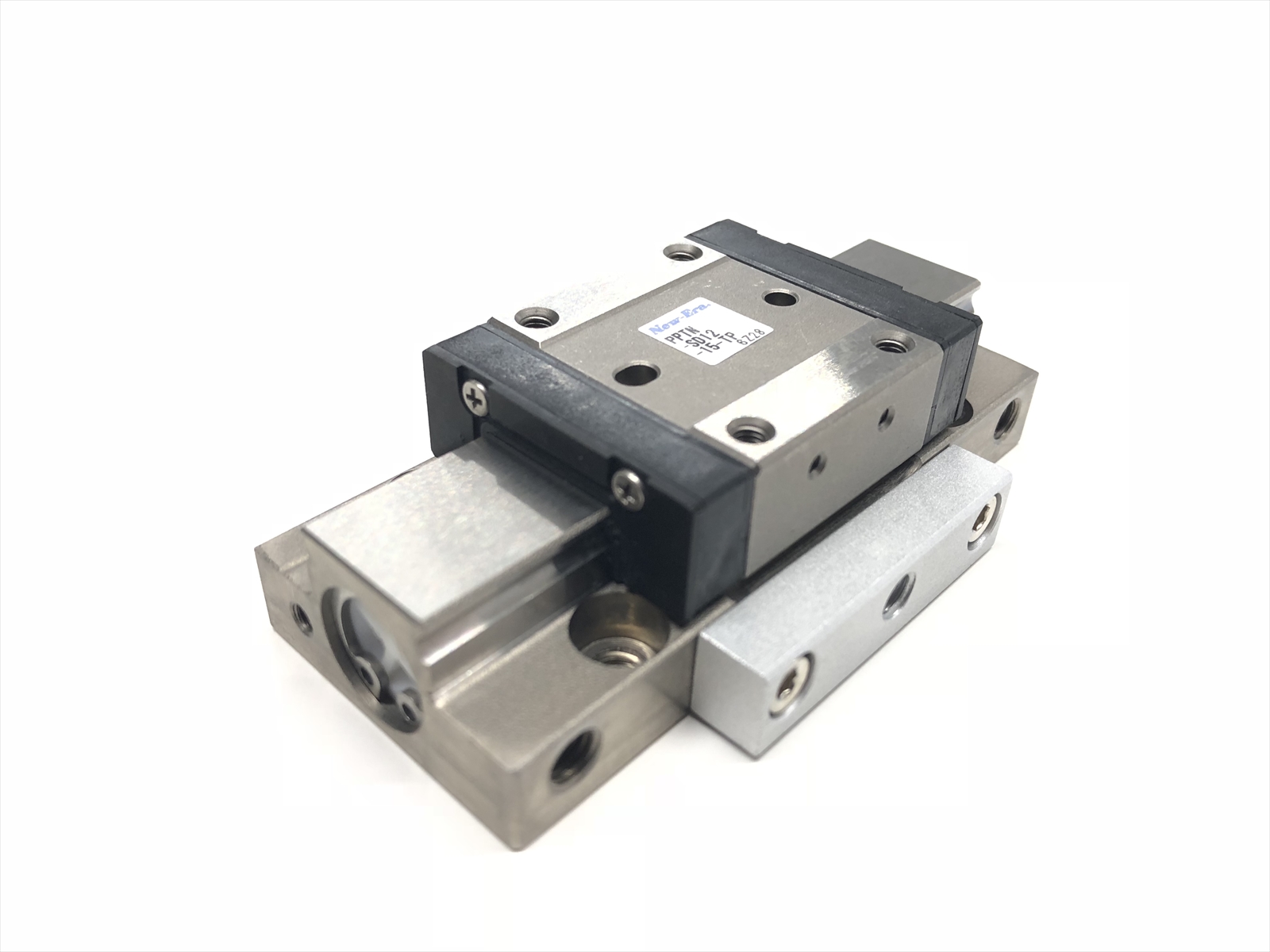

  • Pico Table, Clean Type/PPTN
    Feature
    • Linear guide integrated cylinder
    • Various options can be selected, like stroke adjustment.
    • Fluorine Grease is used, with relief port
    TypeLinear guide
    Operating TypeDouble Acting Cylinder Bore[mm]6,10,12mm
    Stroke5〜25mm Extrusion Force25〜57N
    Loading Work Piece Mass0.3〜1.2kg Operating Temperatura Range[°]5〜60゜
    SwitchAvailable Cylinder Type-
  • Pico Table, Clean Type/PPTNF
    Feature
    • Linear guide integrated cylinder
    • Various options can be selected, like stroke adjustment.
    • Clean type with floating mechanizm
    TypeLinear guide
    Operating TypeDouble Acting Cylinder Bore[mm]10,12mm
    Stroke10〜25mm Extrusion Force34〜52N
    Loading Work Piece Mass0.8〜1.2kg Operating Temperatura Range[°]5〜60゜
    SwitchAvailable Cylinder Type-

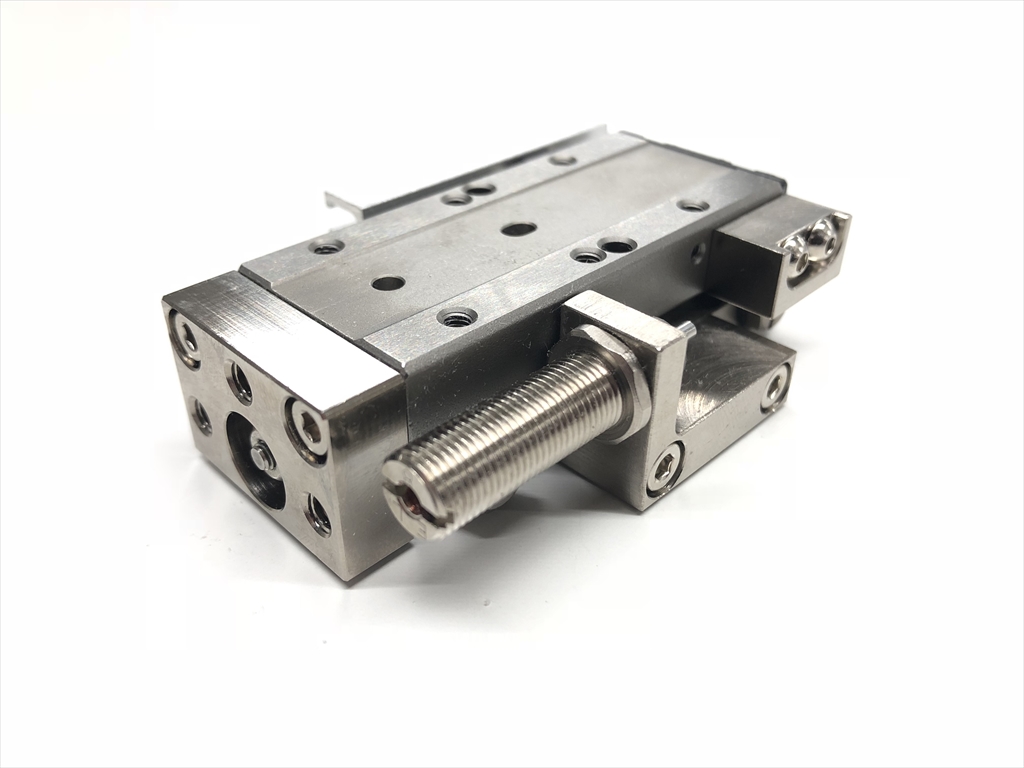

  • Pico Unit/PPU
    Feature
    • Linear guide integrated cylinder
    • Various options can be selected, like stroke adjustment.
    TypeLinear guide
    Operating TypeDouble Acting Cylinder Bore[mm]10,12mm
    Stroke15〜60mm Extrusion Force33〜47N
    Loading Work Piece Mass0.8〜2kg Operating Temperatura Range[°]5〜60゜
    SwitchAvailable Cylinder Type-

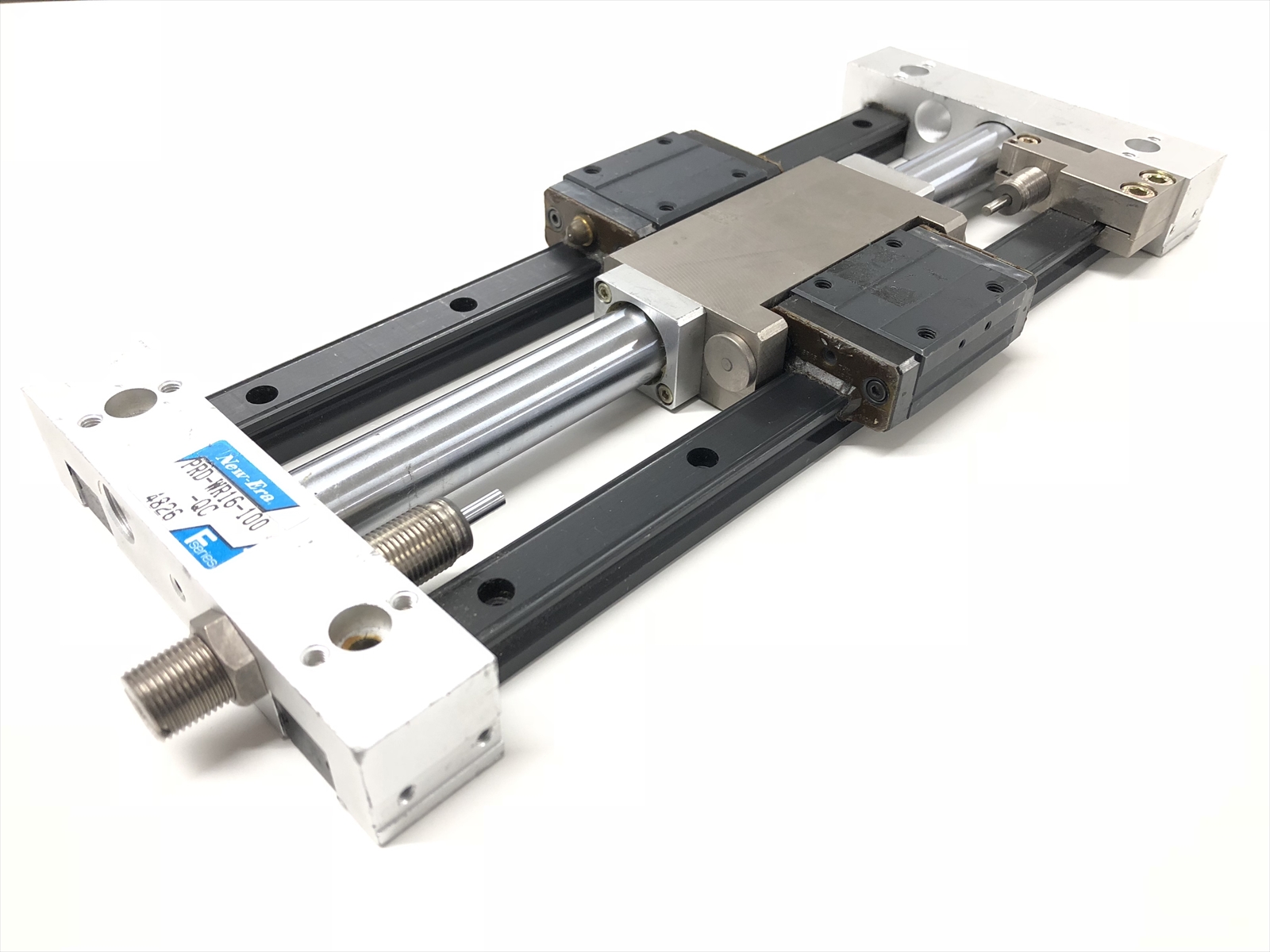

  • Pico Rodless/PRD
    Feature
    • Linear guide + Magnet type rodless
    • Direct mounting on linear guide rail is possible.
    • Size up version of pico slider. Parallel guide, etc, can be selected
    TypeLinear guide
    Operating TypeDouble Acting Cylinder Bore[mm]16,25,32mm
    Stroke50〜2000(50mmUnit)mm Extrusion Force100〜400N
    Loading Work Piece Mass4〜30kg Operating Temperatura Range[°]5〜60゜
    SwitchAvailable Cylinder TypeRodless

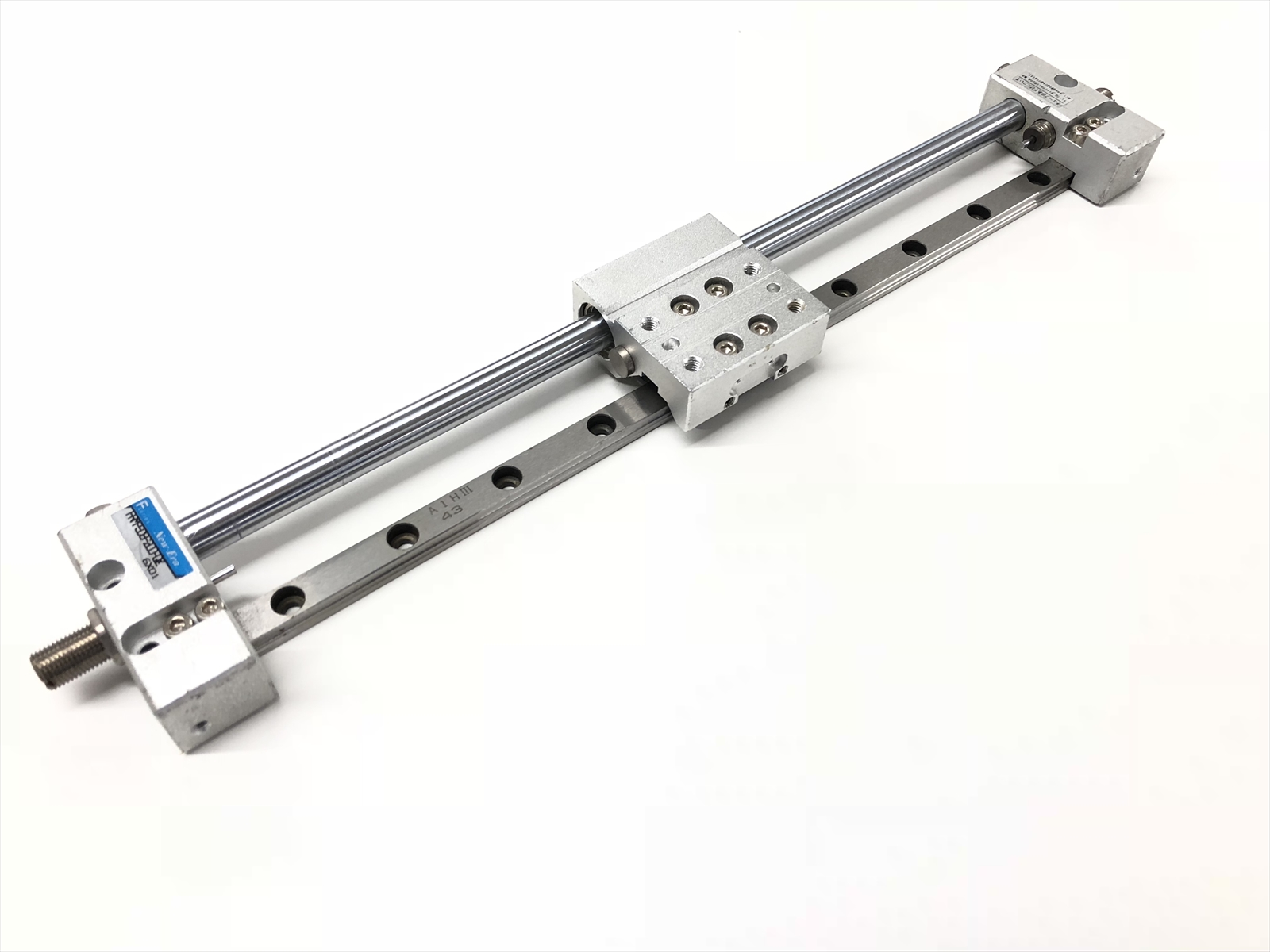

  • Pico Rodless II/PRM2
    Feature
    • Linear guide + Magnet type rodless
    • Direct mounting on linear guide rail is possible.
    TypeLinear guide
    Operating TypeDouble Acting Cylinder Bore[mm]8,12mm
    Stroke50〜300(50mmUnit)mm Extrusion Force25〜57N
    Loading Work Piece Mass1〜3kg Operating Temperatura Range[°]5〜60゜
    SwitchAvailable Cylinder TypeRodless
  • Ball Spline Cylinder/JKX
    Feature
    • It can be produced with each stroke due to tube type body.
    • Wide type linear guide is installed
    TypeBall Spline
    Operating TypeDouble Acting Cylinder Bore[mm]12,16,20,25,32,40mm
    Stroke1〜700(1mmUnit)mm Extrusion Force57〜630N
    Loading Work Piece Mass0.18〜3.3kg Operating Temperatura Range[°]5〜60゜
    SwitchAvailable Cylinder Type-
  • Ball Spline Cylinder, Double Bearing/JKXB
    Feature
    • It can be produced with each stroke due to tube type body.
    • Wide type linear guide is installed
    • High rigidity because of double bearing
    TypeBall Spline
    Operating TypeDouble Acting Cylinder Bore[mm]12,16,20,25,32,40mm
    Stroke1〜700(1mmUnit)mm Extrusion Force57〜630N
    Loading Work Piece Mass0.78〜7.3kg Operating Temperatura Range[°]5〜60゜
    SwitchAvailable Cylinder Type-
  • Pico Table Long/PRZ
    Feature
    • Linear guide + Magnet type rodless
    • W dimention is compact
    TypeLinear guide
    Operating TypeDouble Acting Cylinder Bore[mm]12,16mm
    Stroke50〜300(50mmUnit)mm Extrusion Force57〜100N
    Loading Work Piece Mass1.5〜4kg Operating Temperatura Range[°]5〜60゜
    SwitchAvailable Cylinder TypeRodless
  • Pico Slider/PSL
    Feature
    • Linear guide + Table cylinder
    • Ultra thin type, height is within linear guide height.
    TypeLinear guide
    Operating TypeDouble Acting Cylinder Bore[mm]12mm
    Stroke40,60,80,100,125,150mm Extrusion Force50N
    Loading Work Piece Mass4kg Operating Temperatura Range[°]5〜60゜
    SwitchAvailable Cylinder Type-
  • Pico Slider II/PSU
    Feature
    • Linear guide + Table cylinder
    • Ultra thin type, height is within linear guide height.
    • Size up version of pico slider. Parallel guide, etc, can be selected
    TypeLinear guide
    Operating TypeDouble Acting Cylinder Bore[mm]16mm
    Stroke50〜200(25mmUnit)mm Extrusion Force86N
    Loading Work Piece Mass4kg Operating Temperatura Range[°]5〜60゜
    SwitchAvailable Cylinder Type-
  • Micro Table/FMT
    Feature
    • Linear guide + Table cylinder
    • Compact, light weight by alluminum body.
    TypeTable
    Operating TypeDouble Acting Cylinder Bore[mm]6,10mm
    Stroke10,20,30mm Extrusion Force14〜39N
    Loading Work Piece Mass0.1〜0.2kg Operating Temperatura Range[°]5〜60゜
    SwitchAvailable Cylinder Type-
  • Flat Table/FXTW
    Feature
    • Linear guide + Table cylinder
    • Stroke adjustment option is available.
    TypeTable
    Operating TypeDouble Acting Cylinder Bore[mm]10,15mm
    Stroke30,45,60,80,100mm Extrusion Force39〜88N
    Loading Work Piece Mass2〜4kg Operating Temperatura Range[°]5〜60゜
    SwitchAvailable Cylinder Type-

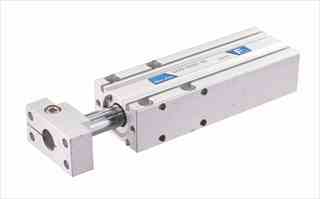

  • Ball Spline Square Cylinder/GXA
    Feature
    • Direct mounging is possible because of square type body.
    • Stroke adjustment option is available.
    TypeBall Spline
    Operating TypeDouble Acting Cylinder Bore[mm]15,20,30mm
    Stroke20〜300(1mmUnit)mm Extrusion Force88〜350N
    Loading Work Piece Mass0.19〜4.8kg Operating Temperatura Range[°]5〜60゜
    SwitchAvailable Cylinder Type-
