Switch

    • ZE
      FormatZE135,ZE155,ZE235,ZE255
      TypeRead Switch Detecing WorkMagnetism
      Wiring MethodZE*35:2 wire type│ZE*55:3 wire type(NPN) Operation Voltabe2 wire type:DC10〜28│3 wire type:DC4.5〜28
      Indicator LightRed LED indicator illuminates at ON Operating Temperture Range[°]0〜60゜
      Lead Wire Length1m,3m Mass[g]1m:15g,3m:35g
      Correspond ProductEHPE / HP03E / HP04R / HP04FR / HP04L / HP04VR / HP05 / HP06 / HP07 / HP07T / HP08 / HP14 / HP15 / HP04NR / HP04NFR / HP04NL / HP04DR / HP04DFR / HP04DL / EHGS / EHVE / EHVJ / HV02E / HV02G / NEOK-12〜20 / NEOKF-12〜20 / RH01(ハンド部)
      Provided CAD data

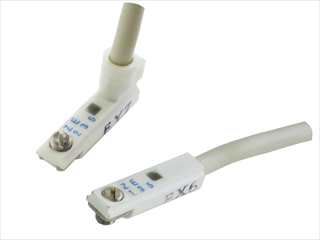

      ZE
    • ZC201/ZC205
      FormatZC201,ZC205
      TypeSolid State Swit Detecing WorkMagnetism
      Wiring Method2 wire type Operation VoltabeZC201:DC5〜28│ZC205:DC10〜28
      Indicator LightZC201:None│ZC205:Red LED indicator illuminates at ON Operating Temperture Range[°]0〜60゜
      Lead Wire Length1m,3m Mass[g]1m:20g,3m:50g
      Correspond ProductCS03R
      Provided CAD data
      ZC201/ZC205
    • ZC230/ZC253
      FormatZC230,ZC253
      TypeRead Switch Detecing WorkMagnetism
      Wiring MethodZC230:2 wire type│ZC253:3 wire type(NPN) Operation VoltabeZC230:DC10〜28│ZC253:DC4.5〜28
      Indicator LightRed LED indicator illuminates at ON Operating Temperture Range[°]0〜60゜
      Lead Wire Length1m,3m Mass[g]1m:20g,3m:50g
      Correspond ProductHP01 / RSR / RS01(B Type) / RS01(D Type) / RT02(B Type) / RT02(D Type) / RT01(B Type) / RT01(D Type) / CS03R / RH01(Rotary Part)
      Provided CAD data
      ZC230/ZC253
    • RB/RC1,2
      FormatRB1,RB2,RC1,RC2
      TypeSolid State Swit Detecing WorkMagnetism
      Wiring Method2 wire type Operation VoltabeDC12〜24
      Indicator LightR*1:Red LED indicator illuminates at ON│R*2:None Operating Temperture Range[°]5〜60゜
      Lead Wire Length1m,3m Mass[g]1m:15g,3m:35g
      Correspond ProductAFC(Gripping Part) / PPTS-6Y〜20 / PPTFS / PPTNS / PPTNFS / PPUS / PRZS / PSLS / PSUS / PRM2S / PRDS / FXTWS / GXAS / CTRS / CTRVS / CZLS / CTWS / CTXS / PSTS / DNPTS
      Provided CAD data
      RB/RC1,2
    • RB/RC4,5
      FormatRB4,RB5,RC4,RC5
      TypeRead Switch Detecing WorkMagnetism
      Wiring MethodR*4:2 wire type│R*5:3 wire type(NPN) Operation VoltabeR*4:DC12〜24│R*5:DC5〜24
      Indicator LightRed LED indicator illuminates at ON Operating Temperture Range[°]5〜60゜
      Lead Wire Length1m,3m Mass[g]1m:15g,3m:35g
      Correspond ProductAFC(Gripping Part) / PPTS-6Y〜20 / PPTFS / PPTNS / PPTNFS / PPUS / PRZS / PSLS / PSUS / PRM2S / PRDS / FXTWS / GXAS / CTRS / CTRVS / CZLS / CTWS / CTXS / PSTS / DNPTS
      Provided CAD data
      RB/RC4,5
    • RB/RC6,7
      FormatRB6,RB7,RC6,RC7
      TypeRead Switch Detecing WorkMagnetism
      Wiring MethodR*6:2 wire type│R*7:3 wire type(NPN) Operation VoltabeDC12〜28
      Indicator LightRed LED indicator illuminates at ON Operating Temperture Range[°]-10〜70゜
      Lead Wire Length1m,3m Mass[g]1m:12g,3m:31g
      Correspond ProductPPTS-4 / NEOK-8 / NEOKF-8
      Provided CAD data
      RB/RC6,7
    • RCA/RCB
      FormatRCA,RCB
      TypeSolid State Swit Detecing WorkMagnetism
      Wiring Method2 wire type Operation VoltabeRCA:AC/DC12〜125│RCB:AC/DC5〜125
      Indicator LightRCA:Red LED indicator illuminates at ON│RCB:None Operating Temperture Range[°]-10〜60゜
      Lead Wire Length1.5m,5m Mass[g]1.5m:24g,5m:69g
      Correspond ProductHP01 / RSR / RS01(B Type) / RT02(B Type) / RT01(B Type) / REM / RM / RH01(Rotary Part)
      Provided CAD data
      RCA/RCB
    • RCM
      FormatRCM
      TypeRead Switch Detecing WorkMagnetism
      Wiring Method2 wire type Operation VoltabeDC4.5〜28
      Indicator LightRed LED indicator illuminates at ON Operating Temperture Range[°]-10〜60゜
      Lead Wire Length1.5m,5m Mass[g]1.5m:24g,5m:69g
      Correspond ProductHP01 / RSR / RS01(B Type) / RT02(B Type) / RT01(B Type) / REM / RM / RH01(Rotary Part)
      Provided CAD data
      RCM
    • RP1,5
      FormatRP1,RP5
      TypeSolid State Swit Detecing WorkMagnetism
      Wiring Method2 wire type Operation VoltabeAC100/DC24
      Indicator LightRP1:Red LED indicator illuminates at ON│RP5:None Operating Temperture Range[°]5〜60゜
      Lead Wire Length1.5m,5m Mass[g]1.5m:24g,5m:69g
      Correspond ProductJKXS / JKXBS / JKRS
      Provided CAD data
      RP1,5
    • RP4
      FormatRP4
      TypeRead Switch Detecing WorkMagnetism
      Wiring Method2 wire type Operation VoltabeDC10〜30
      Indicator LightRed LED indicator illuminates at ON Operating Temperture Range[°]5〜60゜
      Lead Wire Length1.5m,5m Mass[g]1.5m:24g,5m:69g
      Correspond ProductJKXS / JKXBS / JKRS
      Provided CAD data
      RP4
    • RA1
      FormatRA1
      TypeSolid State Swit Detecing WorkMagnetism
      Wiring Method2 wire type Operation VoltabeDC24
      Indicator LightRed LED indicator illuminates at ON Operating Temperture Range[°]5〜60゜
      Lead Wire Length1m,5m Mass[g]1m:10g,5m:30g
      Correspond ProductFMTS / JMBS
      Provided CAD data
      RA1
    • RX1
      FormatRX1
      TypeRead Switch Detecing WorkIron Scraps
      Wiring Method3 wire type(NPN) Operation VoltabeDC12〜24
      Indicator LightRed LED indicator illuminates at ON Operating Temperture Range[°]5〜60゜
      Lead Wire Length3m Mass[g]30g
      Correspond ProductAFC(Detouchable Part)
      Provided CAD data
      RX1

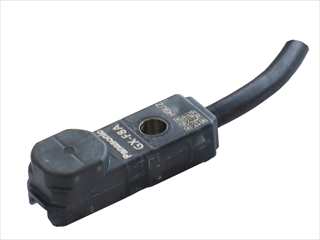

    • GX-F8A
      FormatGX-F8A
      TypeRead Switch Detecing WorkIron Scraps
      Wiring Method3 wire type(NPN) Operation VoltabeDC12〜24
      Indicator LightOrange LED indicator illuminates at ON Operating Temperture Range[°]-25〜70゜
      Lead Wire Length1m Mass[g]15g
      Correspond ProductCKH / CKHL / CSH
      Provided CAD data
      GX-F8A
