Standard Cylinder

To download CAD Data, search for your desired product from the menu on the LEFT.

To download CAD Data, search for your desired product from the menu on the below.

Series
Operating Type	No Select Single Acting Spring Return Single Acting Spring Push Double Acting
Extrusion Force	Please input MIN/MAX value.	～ N
Stroke	Please input MIN/MAX value.	～ mm
Switch	No Select Available None
Additional Function	Buffer + Suction Port Both Sides Rod Stroke Adjustable (Push) Stroke Adjustable (Return) Heatproof Low hydraulic Anti-Rotation Dual Stroke Multi-Position Clean Air Cushion Linear Bearing With Speed Controller Low Speed

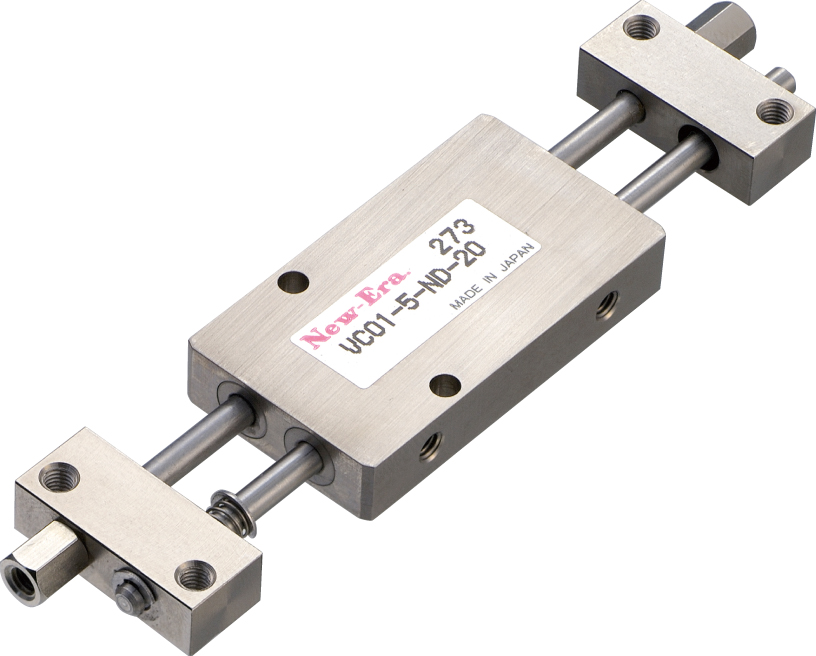

Thin Vacuum Cylinder／VC01
Feature

Small work piece(Ex. IC chip) can be suctioned by suction port.

Preventing work piece from shock by buffer mechanizm.
Operating Type Double Acting Cylinder Bore[mm] 5mm

Stroke 10，20mm Extrusion Force 6.3N

Operating Temperatura Range[°] 0〜60゜ Switch None
Catalog PDF
Example Movie of Use

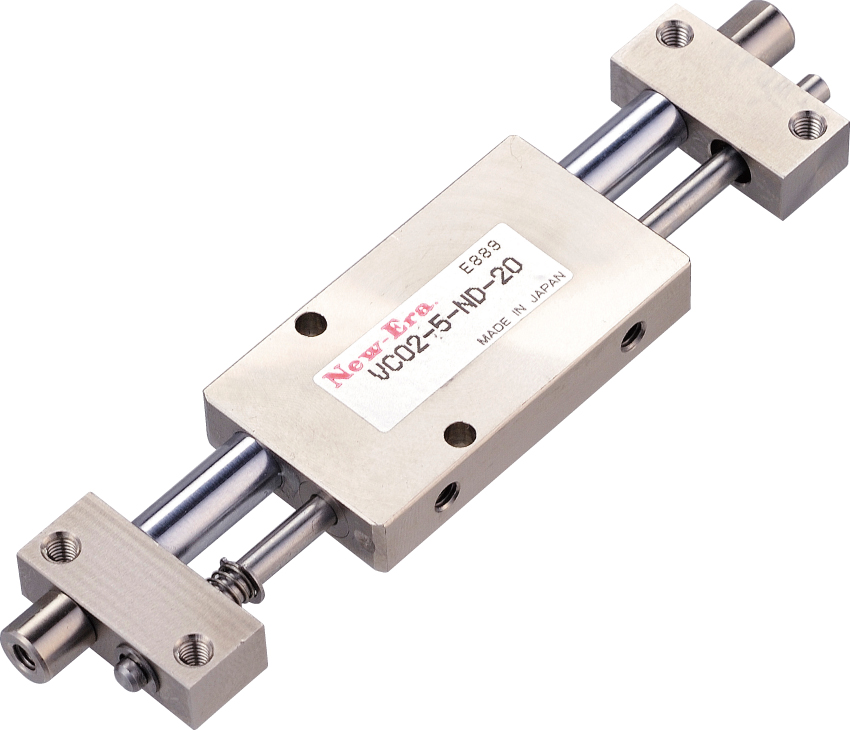

Thin Vacuum Cylinder (Anti-Rotation Accuracy Enhanced Type)／VC02
Feature

Thin cylinder with suction port, buffer mechanizm

Anti-rotation accuracy improved by reviewing parts clearance

Boty thickness 7mm, pursuiting compactness and thinness
Operating Type Double Acting Cylinder Bore[mm] 5mm

Stroke 10，20mm Extrusion Force 6.3N

Operating Temperatura Range[°] 0〜60゜ Switch None
Catalog PDF
Product Introduction Movie
Panel Cylinder／PN
Feature

Since the total length is extremely short, it can be mounted with compact space.

It can be mounted on jig, panel by screw.

Pipings can be arrenged by mounting piping port on head side.
Operating Type Double Acting，Single Acting Spring Return Cylinder Bore[mm] 6，10，16mm

Stroke 5，10，15mm Extrusion Force 10〜100N

Operating Temperatura Range[°] 5〜60゜ Switch None
Catalog PDF
Ultra Compact Cylinder／CA03R
Feature

Ultra compact type cylinder which pursued compactness till its limit.

(It is not corresponded with contactless switch.)
Operating Type Single Acting Spring Return Cylinder Bore[mm] 2.5，4mm

Stroke 5, 10mm / 15, 20mm Extrusion Force 2.5〜6.3N

Operating Temperatura Range[°] 0〜70゜ Switch None
Catalog PDF

Feature	Small work piece(Ex. IC chip) can be suctioned by suction port. Preventing work piece from shock by buffer mechanizm.

Operating Type	Double Acting	Cylinder Bore[mm]	5mm
Stroke	10，20mm	Extrusion Force	6.3N
Operating Temperatura Range[°]	0〜60゜	Switch	None

Feature	Thin cylinder with suction port, buffer mechanizm Anti-rotation accuracy improved by reviewing parts clearance Boty thickness 7mm, pursuiting compactness and thinness

Operating Type	Double Acting	Cylinder Bore[mm]	5mm
Stroke	10，20mm	Extrusion Force	6.3N
Operating Temperatura Range[°]	0〜60゜	Switch	None

Feature	Since the total length is extremely short, it can be mounted with compact space. It can be mounted on jig, panel by screw. Pipings can be arrenged by mounting piping port on head side.

Operating Type	Double Acting，Single Acting Spring Return	Cylinder Bore[mm]	6，10，16mm
Stroke	5，10，15mm	Extrusion Force	10〜100N
Operating Temperatura Range[°]	5〜60゜	Switch	None

Feature	Ultra compact type cylinder which pursued compactness till its limit. (It is not corresponded with contactless switch.)

Operating Type	Single Acting Spring Return	Cylinder Bore[mm]	2.5，4mm
Stroke	5, 10mm / 15, 20mm	Extrusion Force	2.5〜6.3N
Operating Temperatura Range[°]	0〜70゜	Switch	None

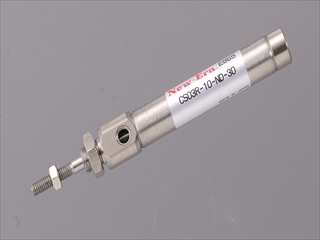

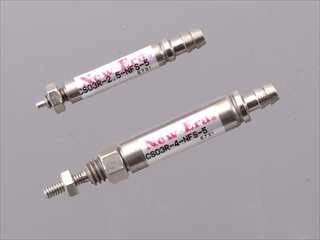

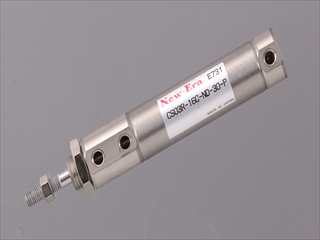

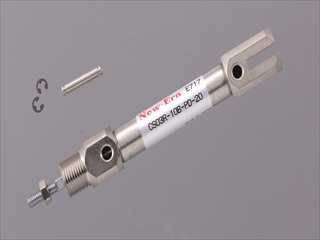

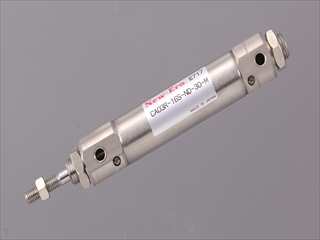

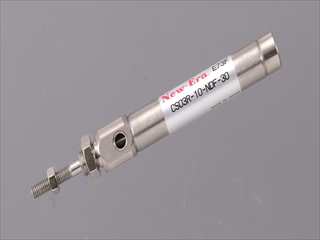

Micro Air Cylinder／CS03R,CA03R

Feature	Long life, light weight, high speed motion are achieved. Plently variations (CS : Magnet built-in type for contactless switch.)

Operating Type	Double Acting，Single Acting Spring Return，Single Acting Spring P	Cylinder Bore[mm]	6，10，16mm
Stroke	1〜200mm	Extrusion Force	7.2〜100N
Operating Temperatura Range[°]	0〜70゜	Switch	Available

Catalog PDF

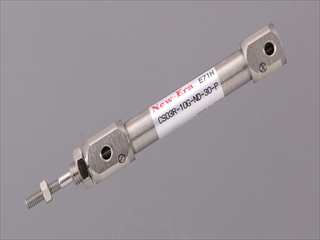

Anti-Rotating Cylinder／CS03R,CA03R

Feature	Unti-rotation mechanizm installed. Compact design is possible by 1 shaft (CS : Magnet built-in type for contactless switch.)

Operating Type	Double Acting，Single Acting Spring Return，Single Acting Spring P	Cylinder Bore[mm]	10，16mm
Stroke	1〜150mm	Extrusion Force	25.4〜100N
Operating Temperatura Range[°]	0〜70゜	Switch	Available

Catalog PDF

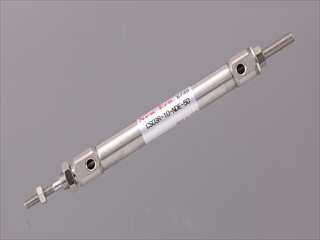

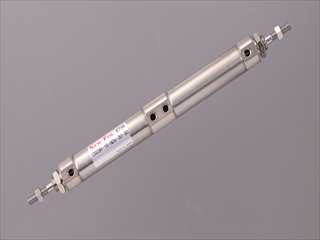

Both Sides Rod Cylinder／CS03R,CA03R
Feature

Rods installed on both sides

(CS : Magnet built-in type for contactless switch.)
Operating Type Double Acting Cylinder Bore[mm] 10，16mm

Stroke 1〜100mm Extrusion Force 32.9〜90.7N

Operating Temperatura Range[°] 0〜70゜ Switch Available
Catalog PDF

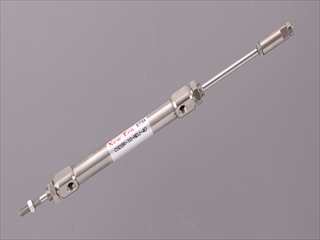

Stroke Adjustable (Push) Cylinder／CS03R,CA03R
Feature

Cylinder stroke adjustable

Stopping position of rod extrusion side can be adjusted by nut.
Operating Type Double Acting Cylinder Bore[mm] 10，16mm

Stroke 1〜200mm Extrusion Force 39.2〜100N

Operating Temperatura Range[°] 0〜70゜ Switch Available
Catalog PDF
Stroke Adjustable (Return) Cylinder／CS03R,CA03R
Feature

Cylinder stroke adjustable

Stopping position of rod retrusion side can be adjusted by adjusting screw.

(CS : Magnet built-in type for contactless switch.)
Operating Type Double Acting Cylinder Bore[mm] 10，16mm

Stroke 1〜100mm Extrusion Force 32.9〜90.7N

Operating Temperatura Range[°] 0〜70゜ Switch Available
Catalog PDF
Heatproof Cylinder／CA03R
Feature

The cylinder is used heatproof o-ring since it is used over temperture condition which is 0 - 70°of standard specification.

(It is not corresponded with contactless switch.)
Operating Type Double Acting Cylinder Bore[mm] 6，10，16mm

Stroke 1〜200mm Extrusion Force 14.1〜100N

Operating Temperatura Range[°] 0〜150゜ Switch None
Catalog PDF

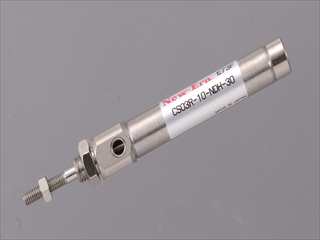

Low Hydraulic Cylinder／CS03R,CA03R
Feature

Stable speed adjustment by hydraulic is possible.

(CS : Magnet built-in type for contactless switch.)
Operating Type Double Acting Cylinder Bore[mm] 6，10，16mm

Stroke 1〜200mm Extrusion Force 14.1〜100N

Operating Temperatura Range[°] 0〜60゜ Switch Available
Catalog PDF

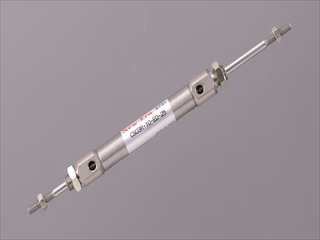

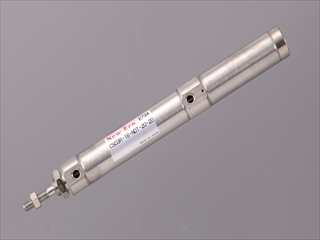

Dual Stroke Cylinder／CS03R,CA03R
Feature

Both strokes can be controled by two steps, and two cylinders intergated back to back with one piece

(CS : Magnet built-in type for contactless switch.)
Operating Type Double Acting Cylinder Bore[mm] 10，16mm

Stroke 2〜120mm Extrusion Force 39.2〜100N

Operating Temperatura Range[°] 0〜70゜ Switch Available
Catalog PDF
Malti-Position Cylinder／CS03R,CA03R
Feature

Two cylinders connected orthostichy into one piece.

Both strokes of cylinder can be controlled by two steps.

(CS : Magnet built-in type for contactless switch.)
Operating Type Double Acting Cylinder Bore[mm] 10，16mm

Stroke 1〜150mm Extrusion Force 39.2〜100N

Operating Temperatura Range[°] 0〜70゜ Switch Available
Catalog PDF
Clean Cylinder／CS03R,CA03R
Feature

The cylinder which is raising dust subdueded by clean room type grease with suction ports.

(CS : Magnet built-in type for contactless switch.)
Operating Type Double Acting，Single Acting Spring Return Cylinder Bore[mm] 6，10，16mm

Stroke 1〜200mm Extrusion Force 10.7〜100N

Operating Temperatura Range[°] 0〜60゜ Switch Available
Catalog PDF
Air Cushioning Cylinder／CS03R,CA03R
Feature

The cylinder which is high speed, high tolerance kinetic energy type with variable air cushion.

(CS : Magnet built-in type for contactless switch.)
Operating Type Double Acting Cylinder Bore[mm] 10，16mm

Stroke 25〜300mm Extrusion Force 39.2〜100N

Operating Temperatura Range[°] 0〜70゜ Switch Available
Catalog PDF

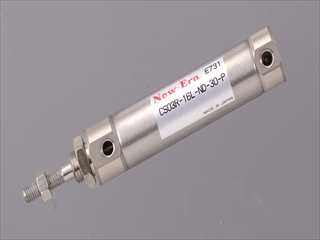

Linear Bearing Cylinder／CS03R,CA03R
Feature

High rigidity, and high accuracy cylinder with linear bearing.

(CS : Magnet built-in type for contactless switch.)
Operating Type Double Acting Cylinder Bore[mm] 10，16mm

Stroke 1〜500mm Extrusion Force 39.2〜100N

Operating Temperatura Range[°] 0〜70゜ Switch Available
Catalog PDF
With Speed Controller Cylinder／CS03R,CA03R
Feature

Compact cylinder with speed controller.

(CS : Magnet built-in type for contactless switch.)
Operating Type Double Acting Cylinder Bore[mm] 10，16mm

Stroke 1〜200mm Extrusion Force 39.2〜100N

Operating Temperatura Range[°] 0〜70゜ Switch Available
Catalog PDF

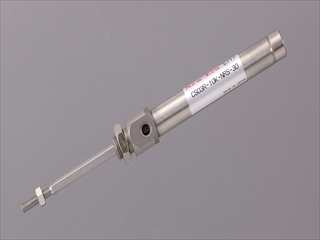

Low Speed Cylinder／CS03R,CA03R
Feature

Special cylinder for low speed operation.

Low speed and stable operation is available. (From 1mm/s)

(CS : Magnet built-in type for contactless switch.)
Operating Type Double Acting Cylinder Bore[mm] 6，10，16mm

Stroke 1〜150mm Extrusion Force 14.1〜100N

Operating Temperatura Range[°] 0〜70゜ Switch Available
Catalog PDF
