Rotary Actuator

    • Rotary Table(with Swivel Joint)/RT01-B
      Feature
      • Omitting air piping with swivel joint.
      • High accepcable energy can be obtained by standard air cushion installin.
      • With through hole for air piping
      Rotating methodRack & Pinion TypeTable
      Stop PositionTwo Positions Cylinder Bore[mm]18,22
      Torque3.46〜4.65N Rotating Angle90,180゜
      Allowable Energy0.28〜0.42J Allowable Thrust Load260〜600N
      Allowable Radial Load185〜430N Angle AdjustmentAvailable
      SwitchAvailable CushionAir Cushion
      Hollow HoleAvailable

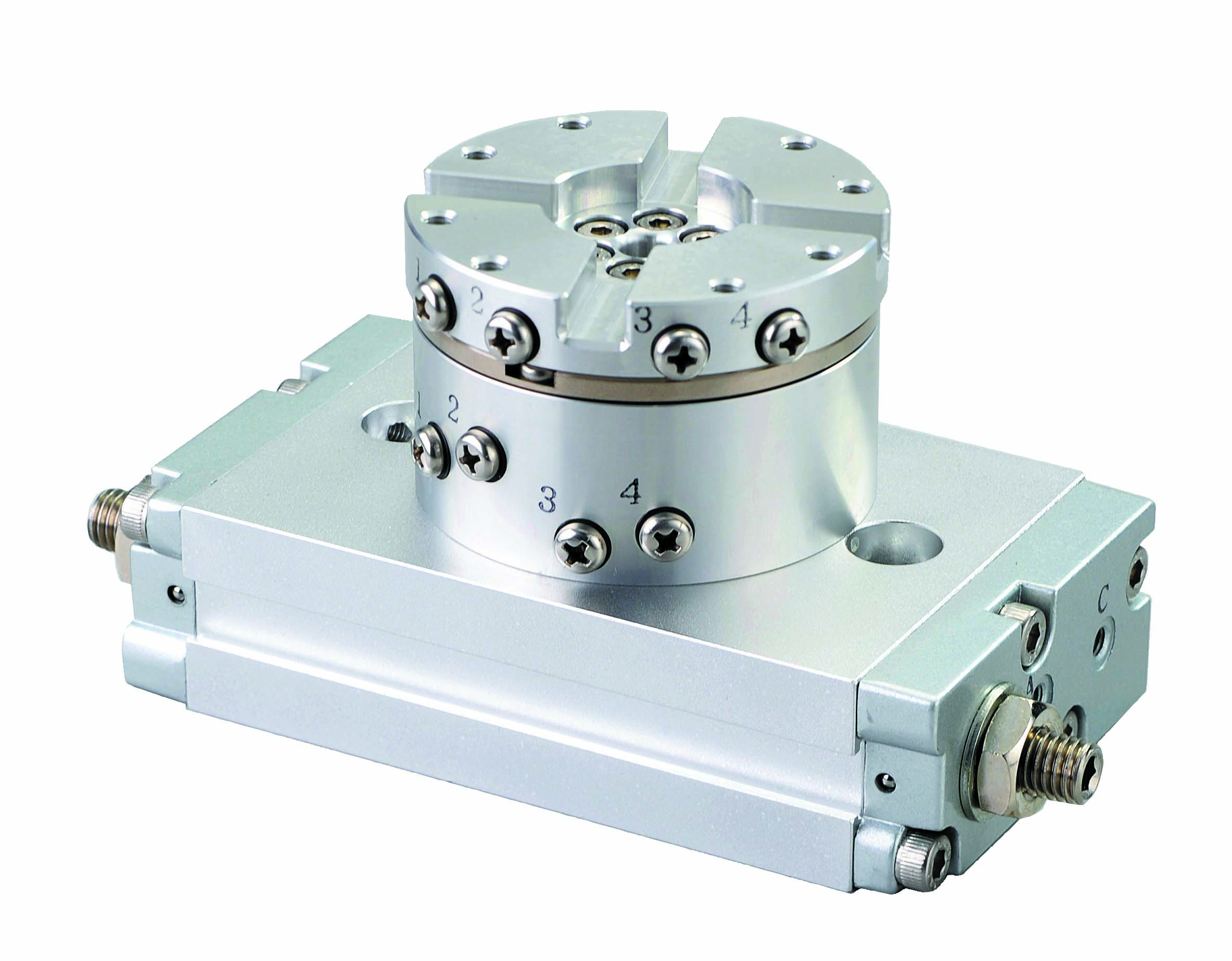

    • Rotary Table(Multi Stop Position Type/with Swivel Joint)/RT01-D
      Feature
      • Omitting air piping with swivel joint.
      • Three positions, or four positions can be stopped.
      • With through hole for air piping
      Rotating methodRack & Pinion TypeTable
      Stop PositionThree, Four Posi Cylinder Bore[mm]18,22
      Torque1.12〜1.7N Rotating Angle14〜180゜
      Allowable Energy0.07〜0.11J Allowable Thrust Load260〜600N
      Allowable Radial Load185〜430N Angle AdjustmentAvailable
      SwitchAvailable CushionNone
      Hollow HoleAvailable

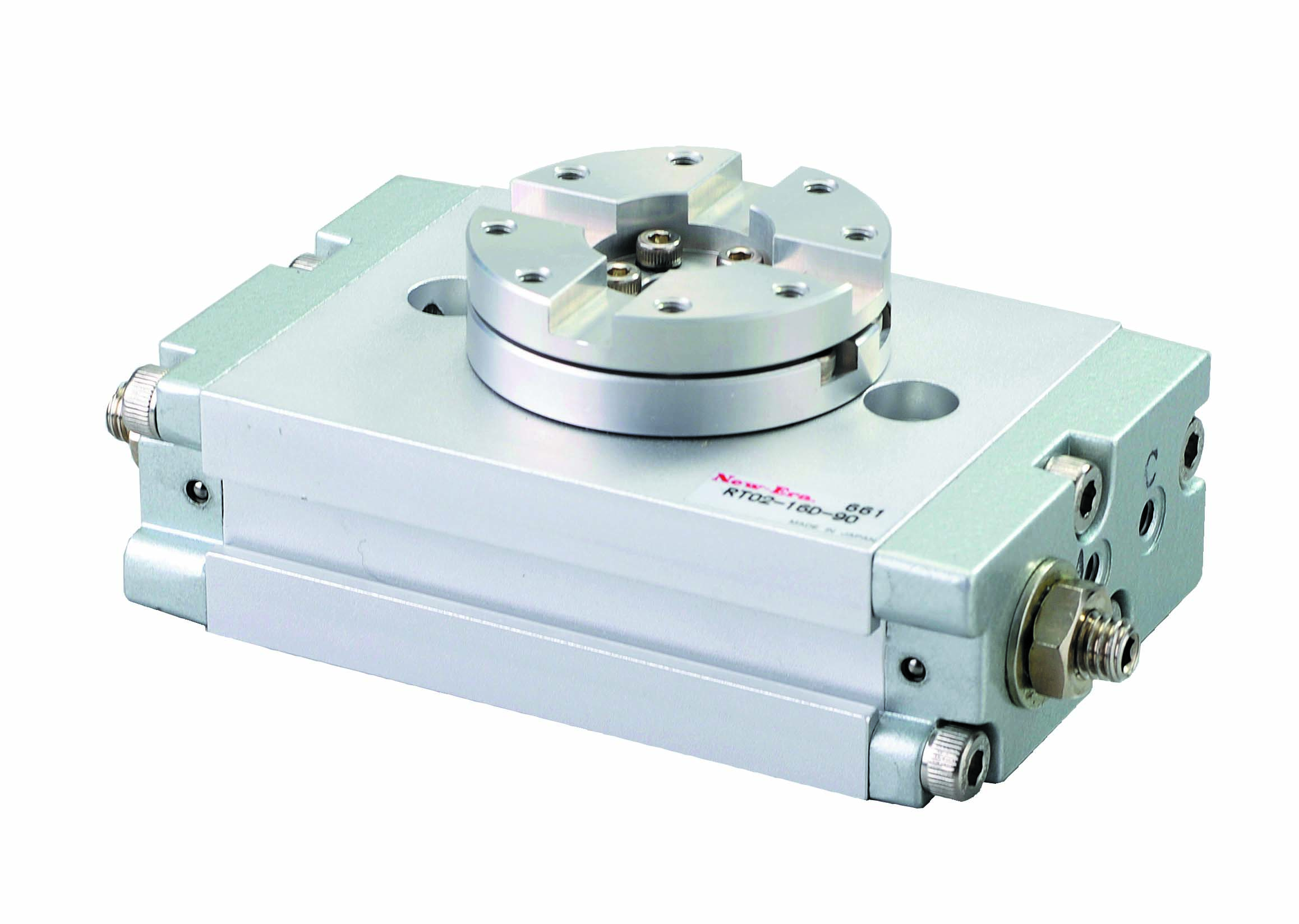

    • Rotary Table (with Air Cushion)/RT02-B
      Feature
      • With high accrate table
      • High accepcable energy can be obtained by standard air cushion installin.
      • With through hole for air piping
      Rotating methodRack & Pinion TypeTable
      Stop PositionTwo Positions Cylinder Bore[mm]10,14,16,18,22
      Torque0.36〜6.03N Rotating Angle90,180゜
      Allowable Energy0.02〜0.42J Allowable Thrust Load50〜500N
      Allowable Radial Load50〜355N Angle AdjustmentAvailable
      SwitchAvailable CushionAir Cushion
      Hollow HoleAvailable
    • Rotary Table (Multi Stop Position Type)/RT02-D
      Feature
      • Three positions, or four positions can be stopped.
      • With high accrate table
      • With through hole for air piping
      Rotating methodRack & Pinion TypeTable
      Stop PositionThree, Four Posi Cylinder Bore[mm]10,14,16,18,22
      Torque0.12〜1.84N Rotating Angle14〜180゜
      Allowable Energy0.002〜0.11J Allowable Thrust Load50〜500N
      Allowable Radial Load50〜355N Angle AdjustmentAvailable
      SwitchAvailable CushionNone
      Hollow HoleAvailable

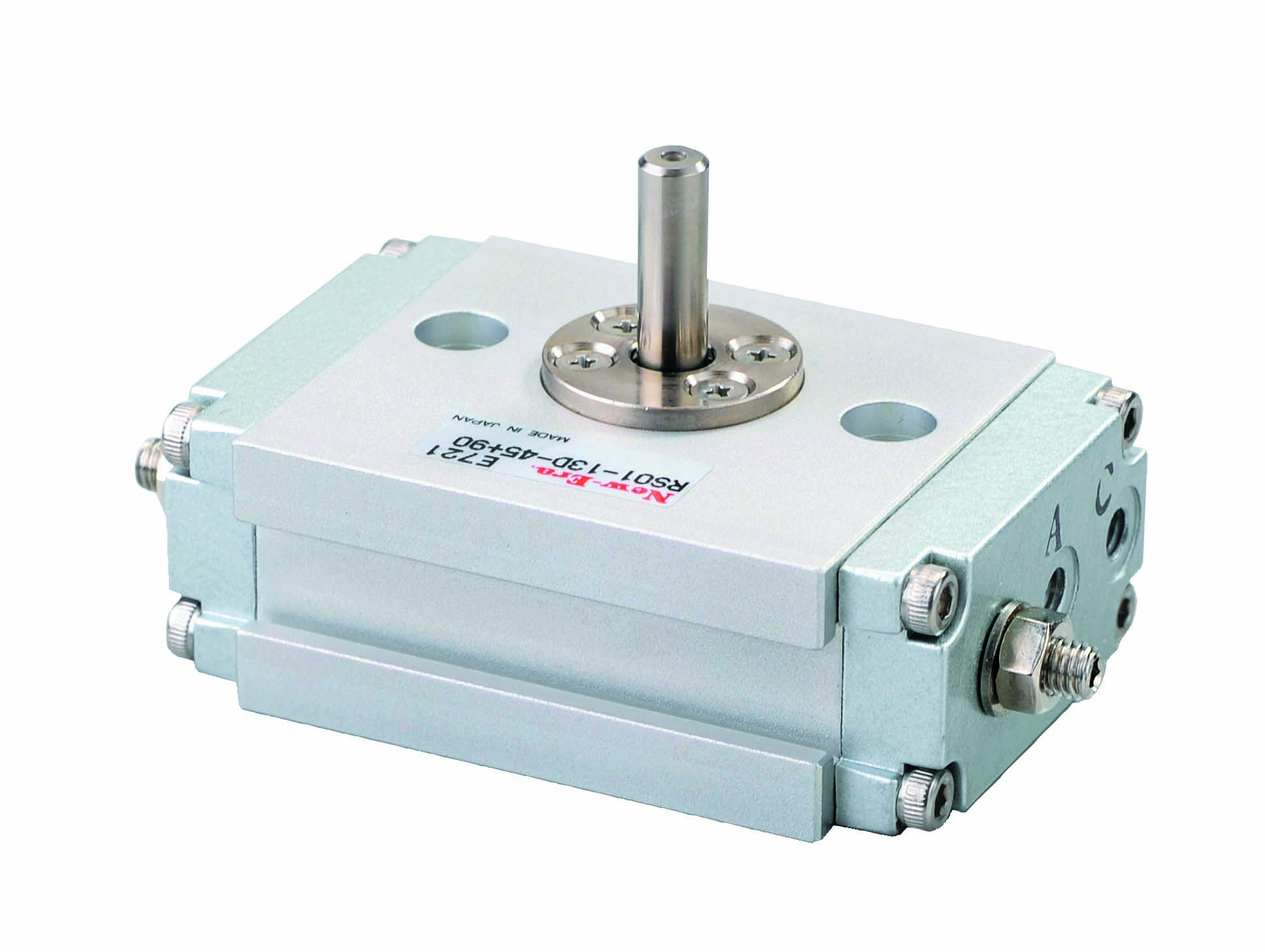

    • Rotary Actuator (with Air Cushion)/RS01-B
      Feature
      • Compact body and high torque.
      • High accepcable energy can be obtained by standard air cushion installin.
      • Radial, thrust back-rush is infinitesimal.
      Rotating methodRack & Pinion TypeShaft
      Stop PositionTwo Positions Cylinder Bore[mm]10,13,14,16,18,22
      Torque0.36〜6.03N Rotating Angle90,180゜
      Allowable Energy0.02〜0.42J Allowable Thrust Load1.18〜29.4N
      Allowable Radial Load2.35〜58.8N Angle AdjustmentAvailable
      SwitchAvailable CushionAir Cushion
      Hollow HoleNone
    • Rotary Actuator (Multi Stop Position Type)/RS01-D
      Feature
      • Three positions, or four positions can be stopped.
      • Radial, thrust back-rush is infinitesimal.
      Rotating methodRack & Pinion TypeShaft
      Stop PositionThree, Four Posi Cylinder Bore[mm]10,13,14,16,18,22
      Torque0.12〜1.84N Rotating Angle14〜180゜
      Allowable Energy0.002〜0.11J Allowable Thrust Load1.18〜29.4N
      Allowable Radial Load2.35〜58.8N Angle AdjustmentAvailable
      SwitchAvailable CushionNone
      Hollow HoleNone
    • Rotary Actuator/RSR,SR
      Feature
      • Light weight actuator which many allumnium alloy is used.
      • Back-rush is zero due to mounting angle stopper at outside.
      Rotating methodRack & Pinion TypeShaft
      Stop PositionTwo Positions Cylinder Bore[mm]9,12,20
      Torque0.11〜0.85N Rotating Angle90,180゜
      Allowable Energy0.002〜0.01J Allowable Thrust Load1.47〜1.96N
      Allowable Radial Load2.94〜4.9N Angle AdjustmentAvailable
      SwitchAvailable CushionNone
      Hollow HoleNone

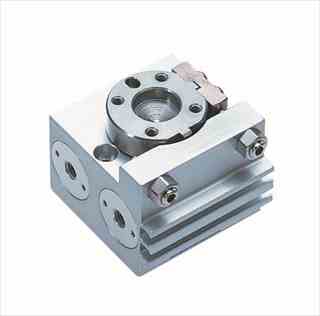

    • Pico Rotary/CTR
      Feature
      • Compact and light weight of rack & pinion type
      • High rigidity is achieved by two rolling bearings on upper and down sides.
      • Top mounting, bottom mounting, side mounting of three way mounting are available.
      Rotating methodRack & Pinion TypeTable
      Stop PositionTwo Positions Cylinder Bore[mm]06,1,2
      Torque0.06〜0.2N Rotating Angle90,180゜
      Allowable Energy0.004〜0.017J Allowable Thrust Load20〜30N
      Allowable Radial Load20〜40N Angle AdjustmentAvailable
      SwitchAvailable CushionNone
      Hollow HoleNone
    • Pico Rotary/CTRV
      Feature
      • Hollow hole type of pico rotary
      • High rigidity is achieved by two rolling bearings on upper and down sides.
      • Top mounting, bottom mounting, side mounting of three way mounting are available.
      Rotating methodRack & Pinion TypeTable
      Stop PositionTwo Positions Cylinder Bore[mm]06,1,2
      Torque0.06〜0.2N Rotating Angle90,180゜
      Allowable Energy0.004〜0.017J Allowable Thrust Load20〜30N
      Allowable Radial Load20〜40N Angle AdjustmentAvailable
      SwitchAvailable CushionNone
      Hollow HoleAvailable
    • Compact High Rotor/RS02A
      Feature
      • Vane type rotary actuator
      • Stable operation, and no popping out phenomenon.
      Rotating methodSingle Vane TypeShaft
      Stop PositionTwo Positions Cylinder Bore[mm]1,3,10,20,30
      Torque0.129〜3.19N Rotating Angle30〜270゜
      Allowable Energy0.0006〜0.025J Allowable Thrust Load3〜30N
      Allowable Radial Load30〜400N Angle AdjustmentAvailable
      SwitchAvailable CushionNone
      Hollow HoleNone
      RS02A
    • Compact High Rotor/RS02A
      Feature
      • Vane type rotary actuator
      • High power with double vane
      Rotating methodDouble Vane TypeShaft
      Stop PositionTwo Positions Cylinder Bore[mm]1,3,10,20,30
      Torque0.286〜7.7N Rotating Angle30〜90゜
      Allowable Energy0.0006〜0.025J Allowable Thrust Load3〜30N
      Allowable Radial Load30〜400N Angle AdjustmentAvailable
      SwitchAvailable CushionNone
      Hollow HoleNone
      RS02A
    • High Rotor/RS02
      Feature
      • Standard type of high rotor
      • Rotating angle is easy to use.
      Rotating methodSingle Vane TypeShaft
      Stop PositionTwo Positions Cylinder Bore[mm]50,150,300
      Torque4.79〜68N Rotating Angle90,180,270,280゜
      Allowable Energy0.049〜3.92J Allowable Thrust Load44.1〜490N
      Allowable Radial Load588〜4900N Angle AdjustmentAvailable
      SwitchAvailable CushionNone
      Hollow HoleNone
      RS02
    • High Rotor/RS02
      Feature
      • Standard type of high rotor
      • With hydro cushion
      Rotating methodSingle Vane TypeShaft
      Stop PositionTwo Positions Cylinder Bore[mm]50,150,300
      Torque4.79〜68N Rotating Angle90,180,270,280゜
      Allowable Energy2.942〜58.84J Allowable Thrust Load44.1〜490N
      Allowable Radial Load588〜4900N Angle AdjustmentAvailable
      SwitchAvailable CushionHydro Cuhsion
      Hollow HoleNone
      RS02
    • High Rotor/RS02
      Feature
      • Standard type of high rotor
      • High power with double vane
      Rotating methodDouble Vane TypeShaft
      Stop PositionTwo Positions Cylinder Bore[mm]50,150,300
      Torque10.4〜206N Rotating Angle90,100゜
      Allowable Energy0.049〜3.92J Allowable Thrust Load44.1〜490N
      Allowable Radial Load588〜4900N Angle AdjustmentAvailable
      SwitchAvailable CushionNone
      Hollow HoleNone
      RS02
    • High Rotor/RS02
      Feature
      • Standard type of high rotor
      • High power with double vane
      • With hydro cushion
      Rotating methodDouble Vane TypeShaft
      Stop PositionTwo Positions Cylinder Bore[mm]50,150,300
      Torque10.4〜206N Rotating Angle90,100゜
      Allowable Energy2.942〜58.84J Allowable Thrust Load44.1〜490N
      Allowable Radial Load588〜4900N Angle AdjustmentAvailable
      SwitchAvailable CushionHydro Cuhsion
      Hollow HoleNone
      RS02
    • Step High Rotor/RS02-SH
      Feature
      • Standard type of high rotor
      • Air hydro type
      • Sutable for low speed operation
      Rotating methodSingle Vane TypeShaft
      Stop PositionThree Positions Cylinder Bore[mm]5,20
      Torque0.0479〜0.195N Rotating Angle60〜360゜
      Allowable Energy0.00196〜0.00882J Allowable Thrust Load29〜126N
      Allowable Radial Load59〜255N Angle AdjustmentAvailable
      SwitchAvailable CushionNone
      Hollow HoleNone
      RS02SH
    • Step High Rotor/RS02-SH
      Feature
      • Standard type of high rotor
      • Air hydro type
      • High power with double vane
      Rotating methodDouble Vane TypeShaft
      Stop PositionThree Positions Cylinder Bore[mm]5,20
      Torque0.096〜0.39N Rotating Angle60〜270゜
      Allowable Energy0.00196〜0.00882J Allowable Thrust Load29〜126N
      Allowable Radial Load59〜255N Angle AdjustmentAvailable
      SwitchAvailable CushionNone
      Hollow HoleNone
      RS02SH
