Directinal Control Valve

    • 5 Port Solenoid Valve/TZ50
      Feature
      • Direct Piping, Base Piping can be selected
      Number of ports5 Switching MethodSingle/Double
      Effective Sectional Area [mm2]3.4〜4 Piping TypeDerect Piping, Base Piping
      Operation VoltabeAC:100,200/DC:12,24 Manual OperationAvailable
      Internal Circuit4 Direction Solenoid Valve, Closed Center, Exaust Center, Pressured Center
      Provided CAD dataTZ50
    • 5 Port Solenoid Valve/TZ51
      Feature
      • Direct Piping, Base Piping can be selected
      Number of ports5 Switching MethodSingle/Double
      Effective Sectional Area [mm2]8〜12 Piping TypeDerect Piping, Base Piping
      Operation VoltabeAC:100,200/DC:12,24 Manual OperationAvailable
      Internal Circuit4 Direction Solenoid Valve, Closed Center, Exaust Center, Pressured Center
      Provided CAD dataTZ51
    • 5 Port Solenoid Valve/TZ52
      Feature
      • Direct Piping, Base Piping can be selected
      Number of ports5 Switching MethodSingle/Double
      Effective Sectional Area [mm2]13〜18 Piping TypeDerect Piping, Base Piping
      Operation VoltabeAC:100,200/DC:12,24 Manual OperationAvailable
      Internal Circuit4 Direction Solenoid Valve, Closed Center, Exaust Center, Pressured Center
      Provided CAD dataTZ52
    • 5 Port Solenoid Valve/TA51
      Feature
      • Base Piping Type
      Number of ports5 Switching MethodSingle/Double, Double Pilot
      Effective Sectional Area [mm2]3.7〜8.8 Piping TypeBese Piping
      Operation VoltabeAC:100,200/DC:24 Manual OperationAvailable
      Internal Circuit4 Direction Solenoid Valve, Closed Center, Exaust Center, Pressured Center
      Provided CAD data

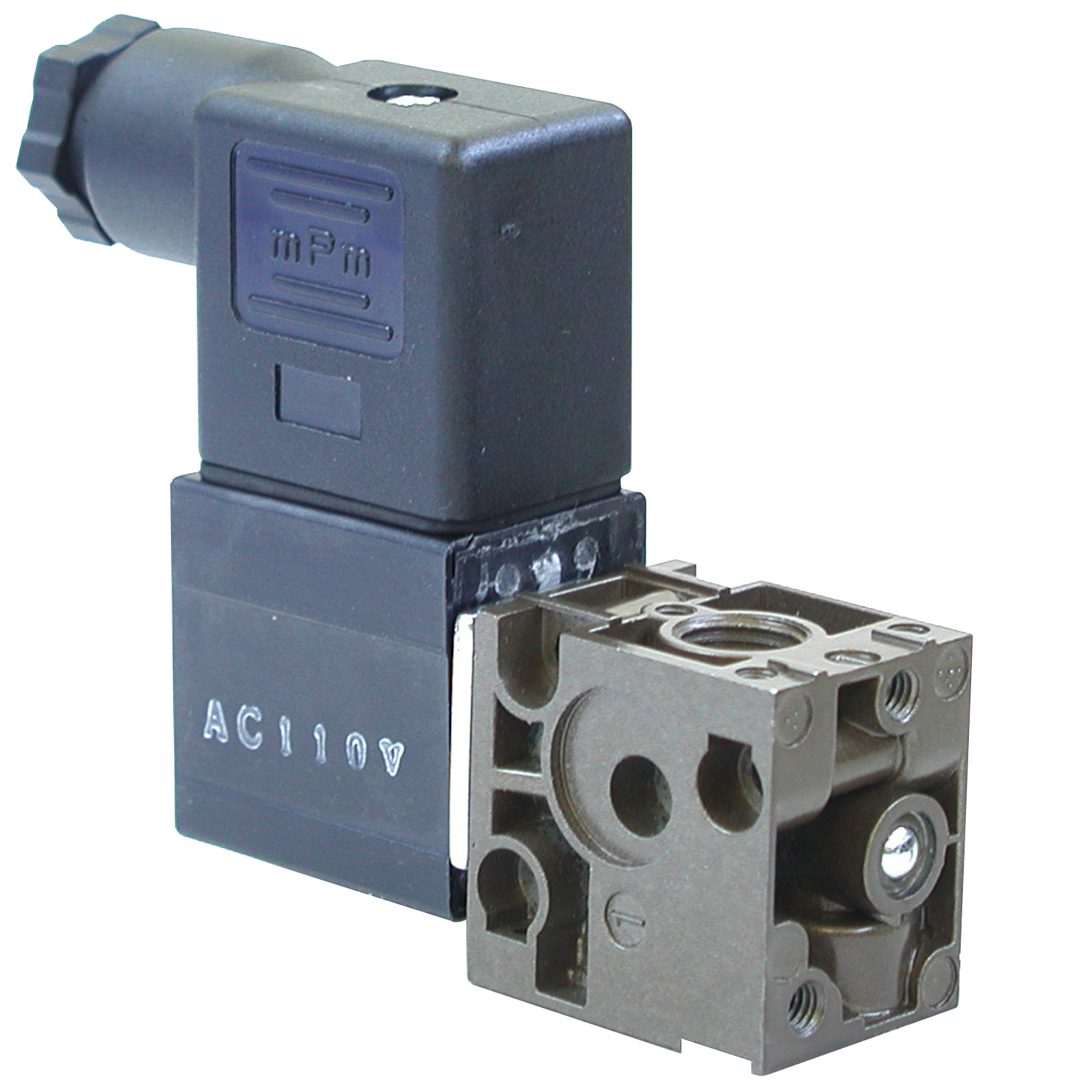

    • 3 Port Direct Acting Solenoid Valve/LM30
      Feature
      • Direct Piping Type
      Number of ports3 Switching MethodSingle Solenoid
      Effective Sectional Area [mm2]0.9 Piping TypeDirect Piping
      Operation VoltabeAC:100,200/DC:24 Manual OperationAvailable
      Internal Circuit3 Direction Solenoid Valve Normally Close
      Provided CAD data

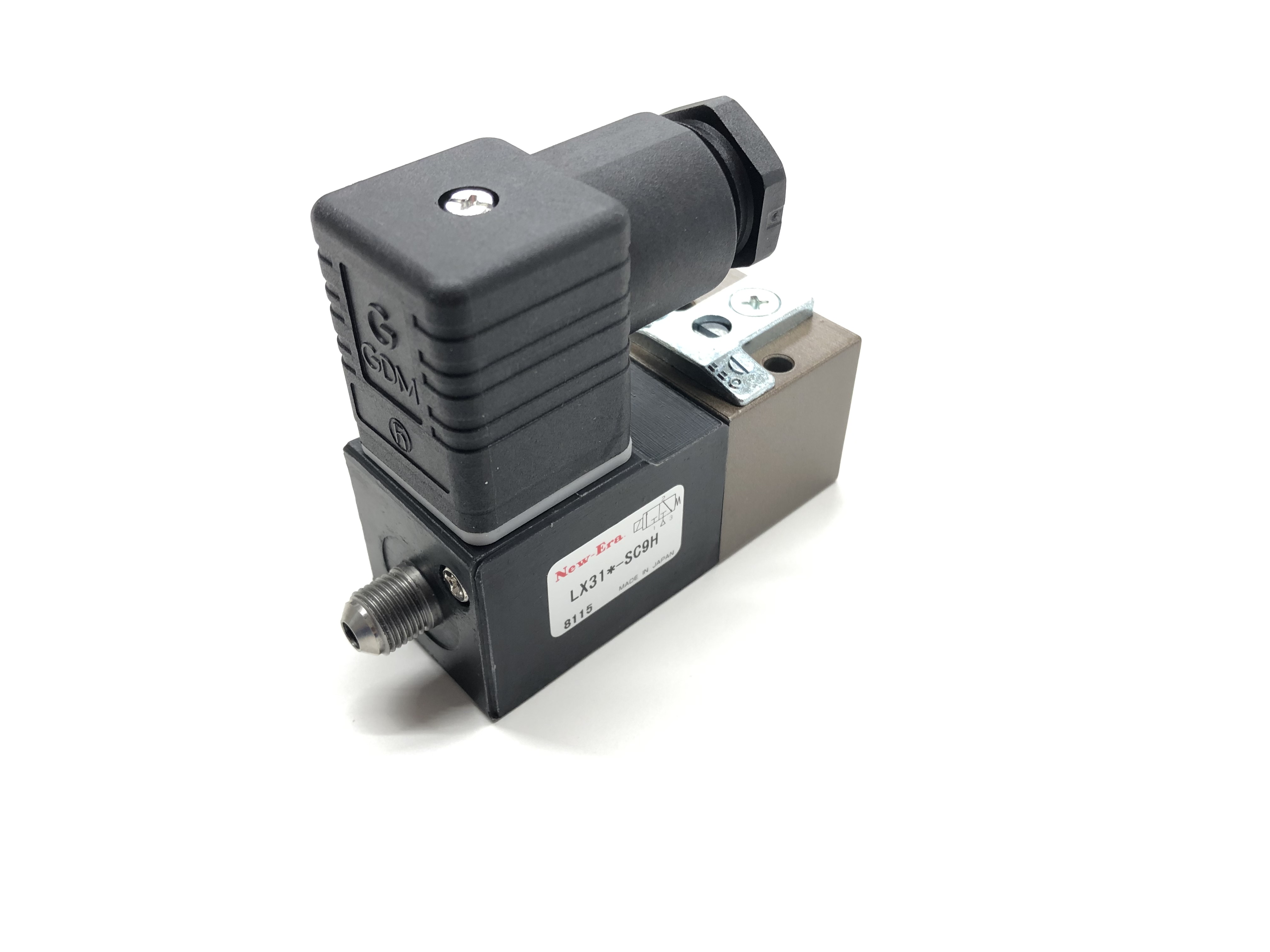

    • 3 Port Direct Acting Solenoid Valve/LX31
      Feature
      • Base Piping Type
      Number of ports3 Switching MethodSingle Solenoid
      Effective Sectional Area [mm2]1.4〜1.8 Piping TypeBese Piping
      Operation VoltabeAC:100,200/DC:24 Manual OperationAvailable
      Internal Circuit3 Direction Solenoid Valve Normally Close, 3 Direction Solenoid Valve Normally Open
      Provided CAD data
    • 3 Port Direct Acting Solenoid Valve/FT30
      Feature
      • ・Discontinued Product

        ・Valve Width 15mm, Compact Light Valve of Unit Weight 35g

      Number of ports3 Switching MethodSingle Solenoid
      Effective Sectional Area [mm2]0.57〜0.66 Piping TypeBese Piping
      Operation VoltabeDC:24 Manual OperationAvailable
      Internal Circuit3 Direction Solenoid Valve Normally Close, 3 Direction Solenoid Valve Normally Open
      Provided CAD data
