• 14 results found. ( 1~10 to Showing )

• NEOK

  Feature	Air gripper with swivel joint High rigidity/high accuracy gripper "HP04R" can be freely rotated.

  Application	Gripping+Free Rotation	Cylinder Bore[mm]	8，12，16，20
  Stroke	4〜14	Thrust	6.6〜50N
  Product Mass[g]	80g
  Provided CAD data	NEOK-8/12/16/20



  Catalog PDF

  DXF

  PARASOLID

  STEP

  Product Introduction Movie

  Example Movie of Use

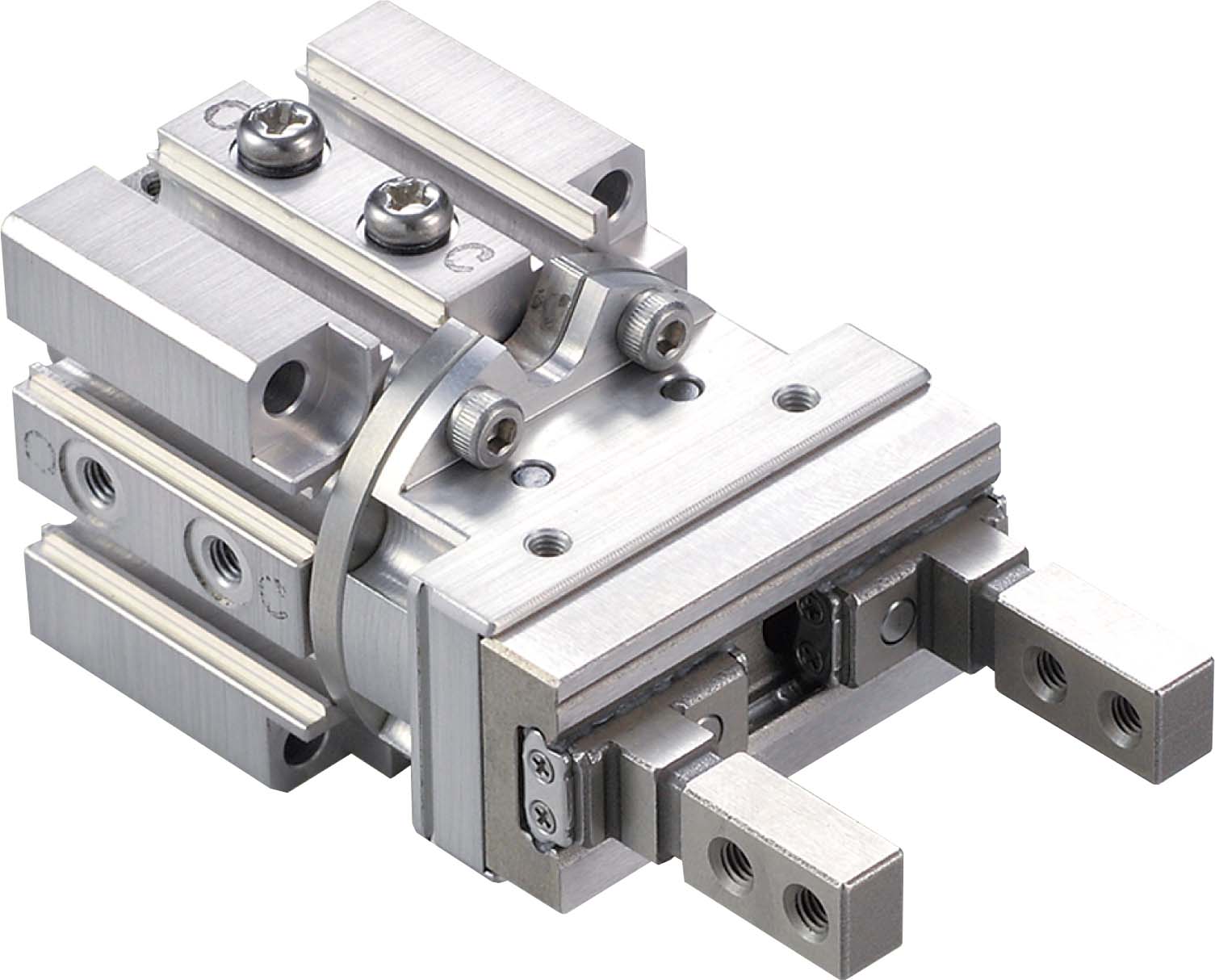

• NEOKF

  Feature	Air gripper finger type with swivel joint High rigidity/high accuracy gripper "HP04R" can be freely rotated.

  Application	Gripping+Free Rotation	Cylinder Bore[mm]	8，12，16，20
  Stroke	4〜14	Thrust	6.6〜50N
  Product Mass[g]	85g
  Provided CAD data	NEOKF-8/12/16/20



  Catalog PDF

  DXF

  PARASOLID

  STEP

  Example Movie of Use

• NEOKT

  Feature	Now Released!! Parallel Three Finger Gripper With Swivel Joint High rigidity/high accuracy gripper "HP15" can be freely rotated.

  Application	Gripping+Free Rotation	Cylinder Bore[mm]	16，20
  Stroke	6，10	Thrust	20〜35.5N
  Product Mass[g]	340g
  Provided CAD data	NEOKT-16/20



  Catalog PDF

  DXF

  PARASOLID

  STEP

  Product Introduction Movie

• NEOKS

  Feature	Table Type of NEOKS Free Rotation + Vacuum, or can be used as Rotary Joint Case is common with ＮＥＯＫ(２ finger) / ＮＥＯＫＴ(３ finger), Changable each other

  Application	Vacuum + Free Rotation	Cylinder Bore[mm]	8，12，16
  Stroke	-	Thrust	-N
  Product Mass[g]	70〜g
  Provided CAD data	NEOKS-8/12/16



  Catalog PDF

  DXF

  PARASOLID

  STEP

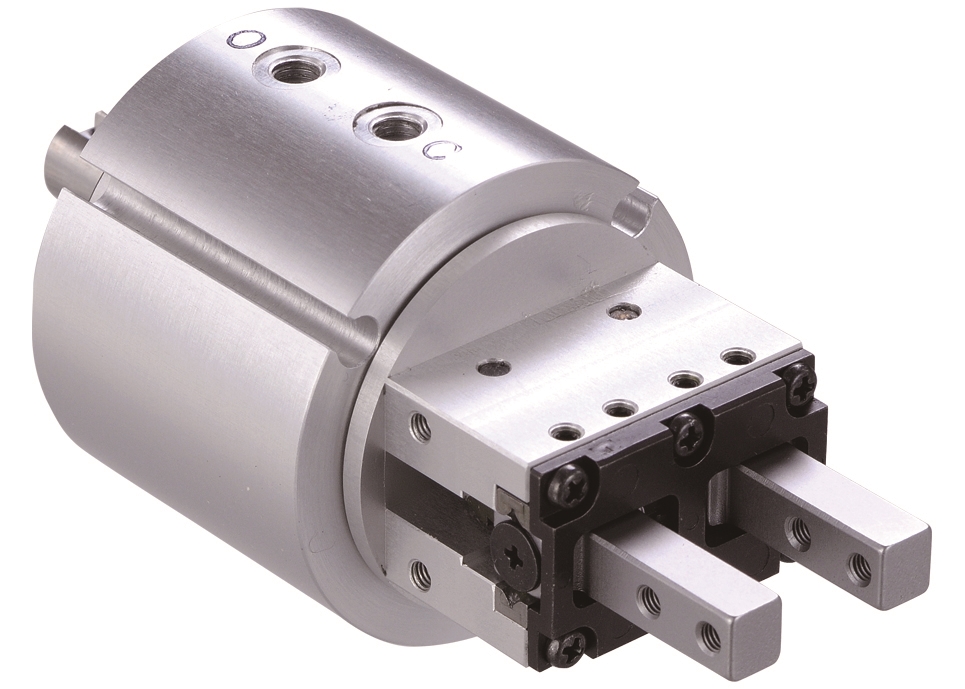

• NEOKP

  Feature	Air gripper with swivel joint High rigidity gripper "HP03E" can be freely rotated.

  Application	Gripping+Free Rotation	Cylinder Bore[mm]	12，16，20，25
  Stroke	4‾14	Thrust	16‾67N
  Product Mass[g]	145‾g
  Provided CAD data	NEOKP-12/16/20/25



  Catalog PDF

  DXF

  PARASOLID

  STEP

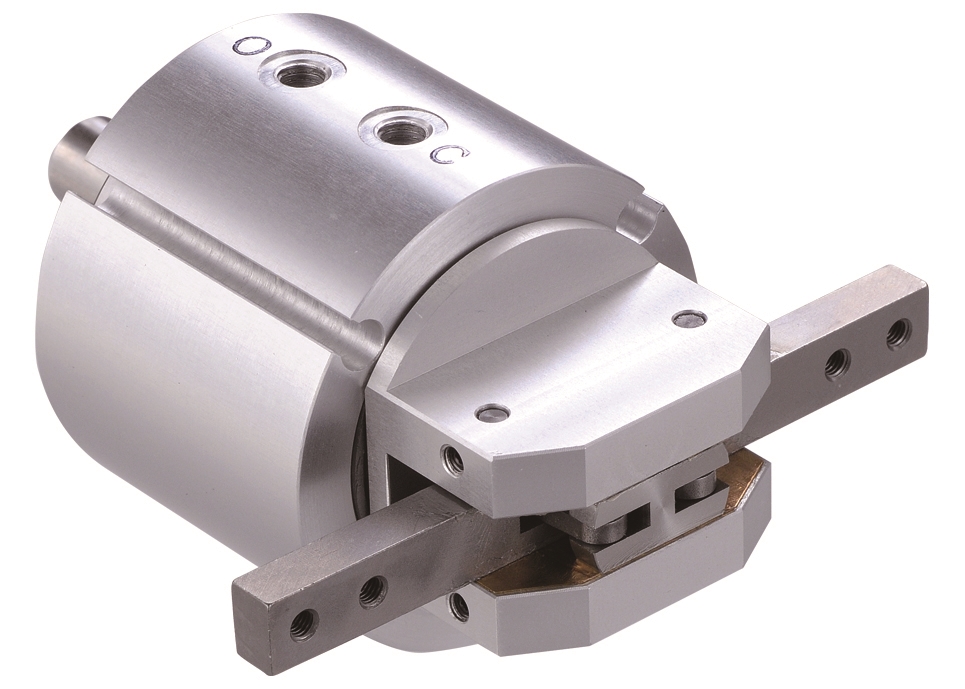

• NEOKO

  Feature	Air gripper with swivel joint 180 open/close gripper “HV02E” can be freely rotated.

  Application	Gripping+Free Rotation	Cylinder Bore[mm]	12，16，20，25
  Stroke	180°	Thrust	6.7‾73N
  Product Mass[g]	140‾g
  Provided CAD data	NEOKO-12/16/20/25



  Catalog PDF

  DXF

  PARASOLID

  STEP

• RH01

  Feature	Rotary Gripper Parallel gripper / fulcrum open, close

  Application	Gripping+Rotation	Cylinder Bore[mm]	16，20
  Stroke	Parallel：8〜14，V Type：30〜180	Thrust	12〜45N
  Product Mass[g]	714g
  Provided CAD data	RH01-G/O/P/V



  Catalog PDF

  DXF

  PARASOLID

  STEP

  Mechanism Explanation Movie

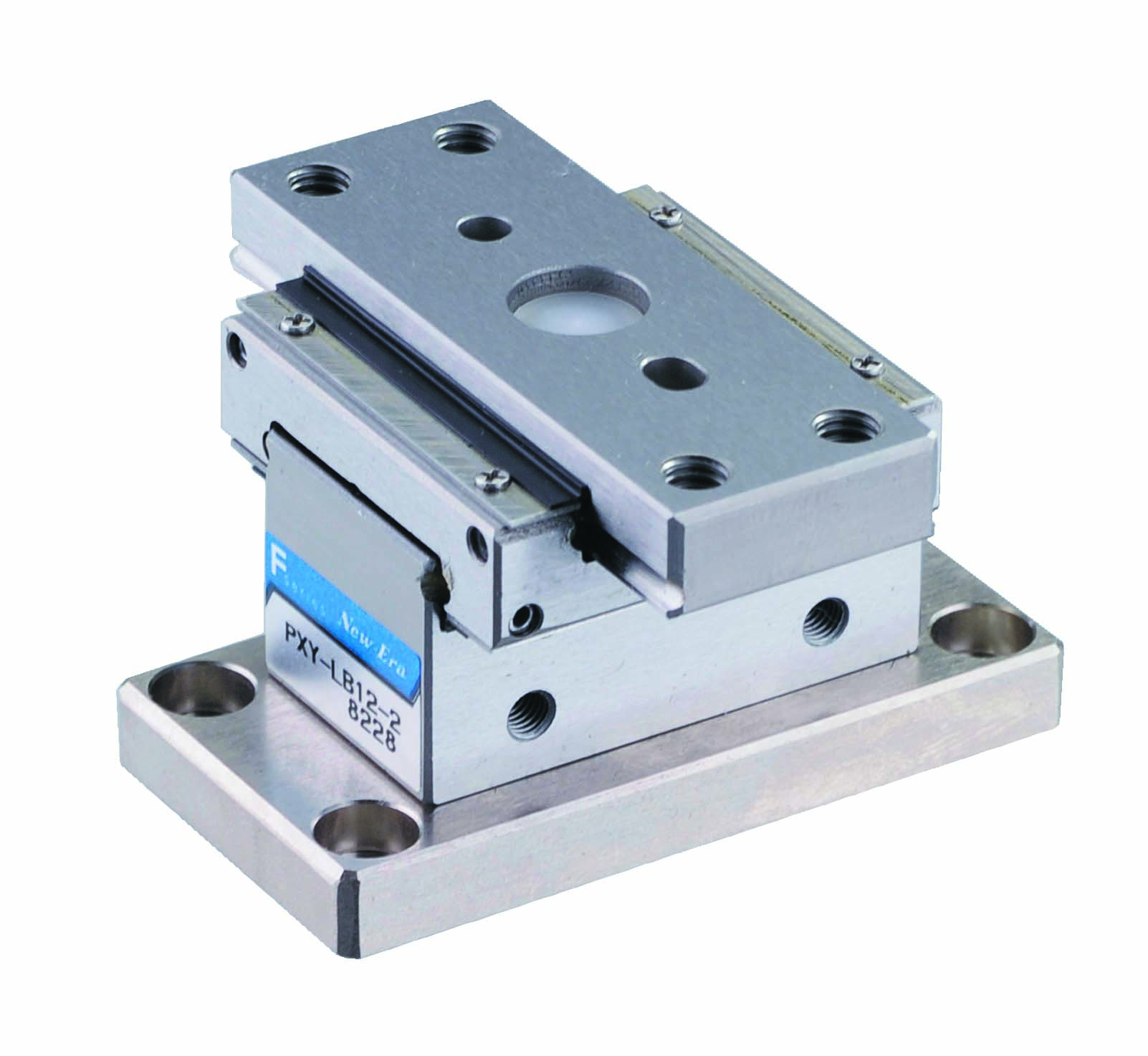

• PXY

  Feature	Pico Positioner Light and soft sliding with cross linear guide and locking after returning at center position by pressurized PXY φ8 smaller size has on sale! For detail → Cataloge (PDF:3,678K)

  Application	Error absorbtion	Cylinder Bore[mm]	12，20
  Stroke	1，2，3	Thrust	76〜175N
  Product Mass[g]	130g
  Provided CAD data	PXY-12/20



  Catalog PDF

  DXF

  PARASOLID

  STEP

  Product Introduction Movie

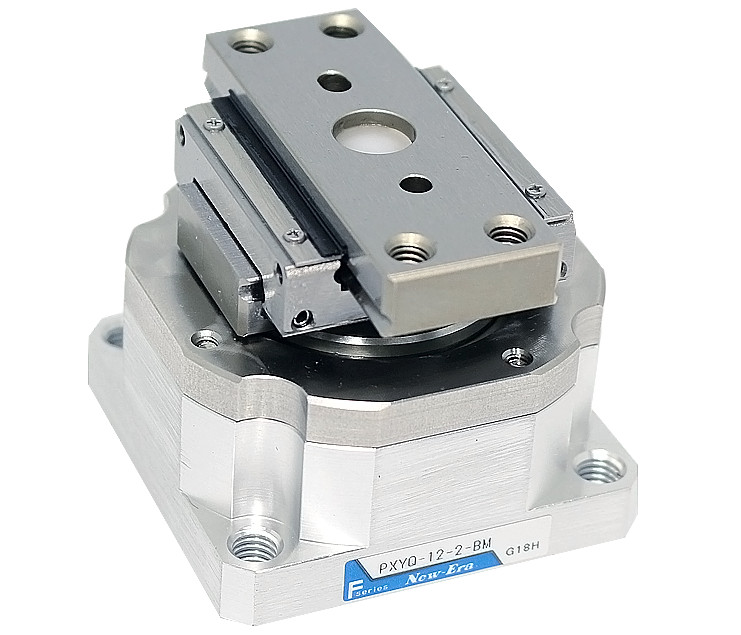

• PXYQ

  Feature	Pico Positioner New function of θ direction rotation installed. Light and soft sliding with cross linear guide and locking after by air.

  Application	X-Y+θerror absorbing	Cylinder Bore[mm]	X-Y：12 θ：20 equate
  Stroke	2(X-Y),　±3.4°(θ)	Thrust	76N
  Product Mass[g]	255g
  Provided CAD data	PXYQ-12



  Catalog PDF

  DXF

  PARASOLID

  STEP

  Product Introduction Movie

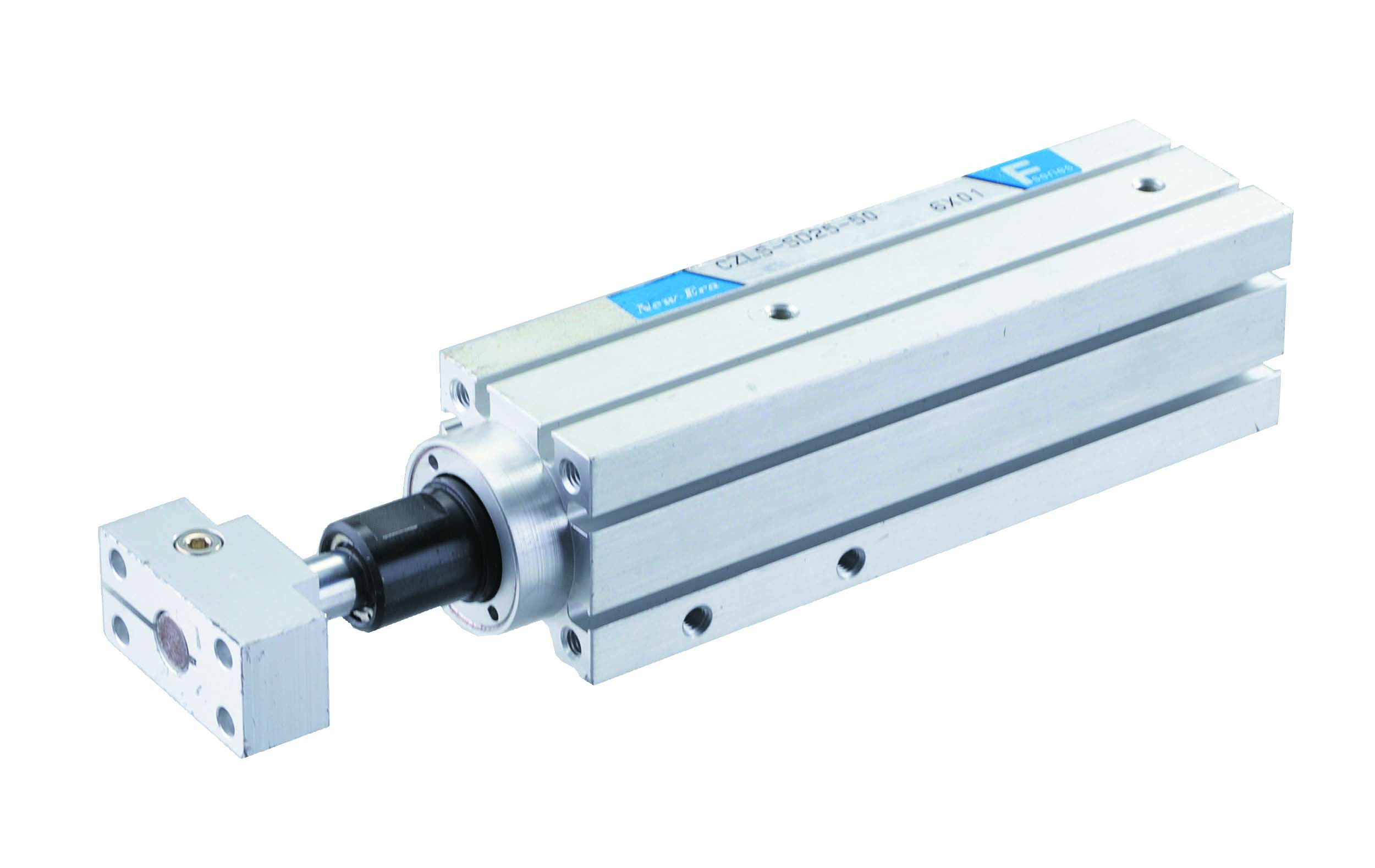

• CZL

  Feature	Mini Swing High accuracy actuator can be freely rotated by external force.

  Application	Linear Motion+Free Rotation	Cylinder Bore[mm]	25，32
  Stroke	25，50，75，100，150	Thrust	250〜400N
  Product Mass[g]	600g
  Provided CAD data	CZL-25/32



  Catalog PDF

  DXF
