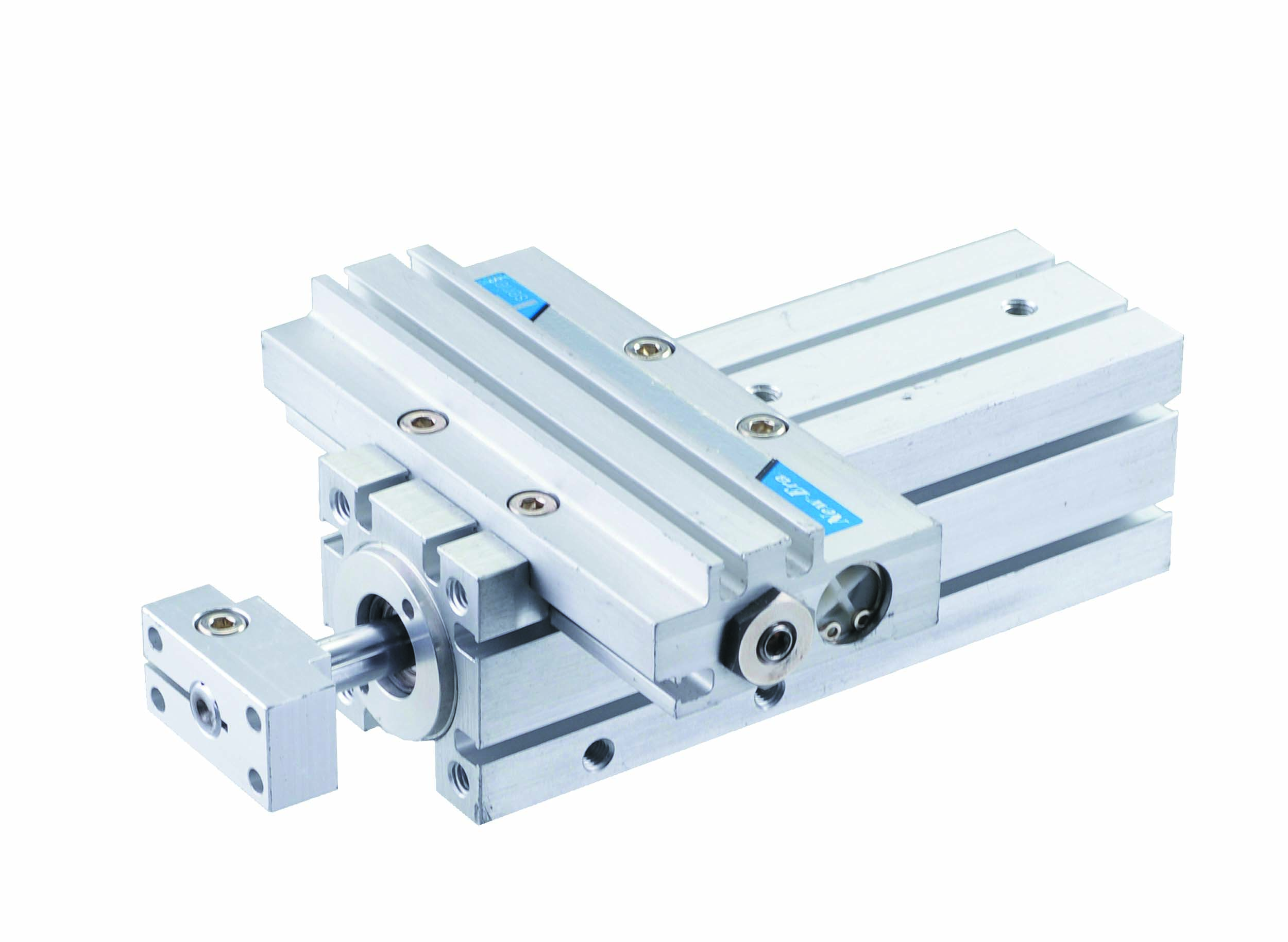

  Feature	Linear Twist High accurate reciprocation, and rotation are achieved with 1 piece.

  Application	Linear Motion+Rotation	Cylinder Bore[mm]	25，32
  Stroke	25，50，75，100	Thrust	240〜390N
  Product Mass[g]	760g
  Provided CAD data	CTW-25/32



  Catalog PDF

  DXF

• CTX

  Feature	Linear Twist with Stroke Adjusment High accurate reciprocation, and rotation are achieved with 1 piece.

  Application	Linear Motion+Rotation	Cylinder Bore[mm]	25，32
  Stroke	25，50，75，100	Thrust	240〜390N
  Product Mass[g]	850g
  Provided CAD data	CTX-25/32



  Catalog PDF

  DXF

• PST

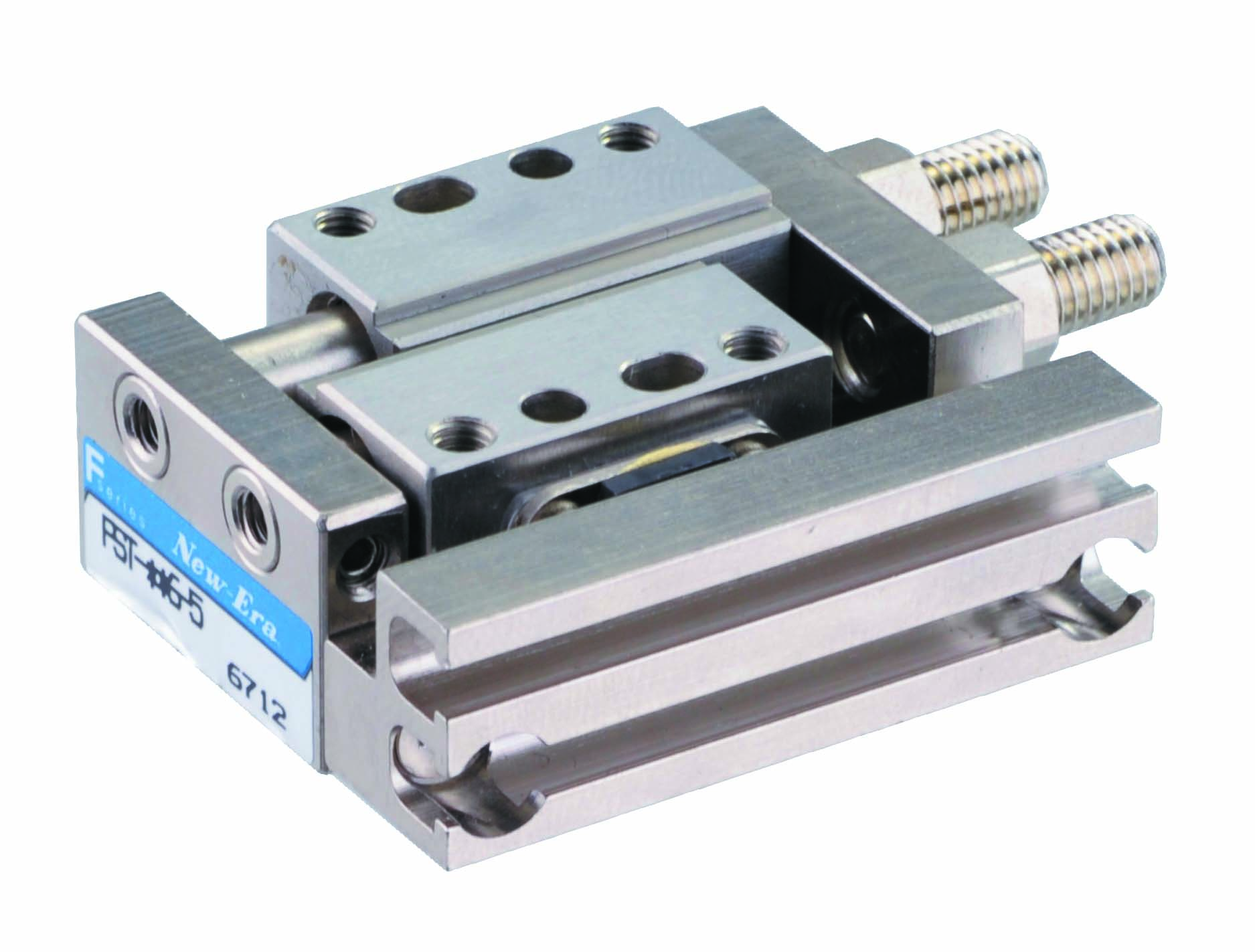

  Feature	Pico Synchro Parallely located two guide tables can be synchronized.

  Application	Escapement/Gripping	Cylinder Bore[mm]	6
  Stroke	5，10	Thrust	3.4〜8.8N
  Product Mass[g]	70g
  Provided CAD data	PST-6



  Catalog PDF

  DXF

  PARASOLID

  STEP

• DNPT

  Feature	One shaft high accurate actuator Ball screw is installed on compact linear guide.

  Application	Electric Cylinder/Precise Positioning	Cylinder Bore[mm]	12，16
  Stroke	25，25	Thrust	-N
  Product Mass[g]	380g
  Provided CAD data	DNPT-12/16



  Catalog PDF

  DXF

  PARASOLID

  STEP

  Example Movie of Use
