Cylinder with High Precision Linear Guide Search Results

30 results found. ( 21~30 to Showing )

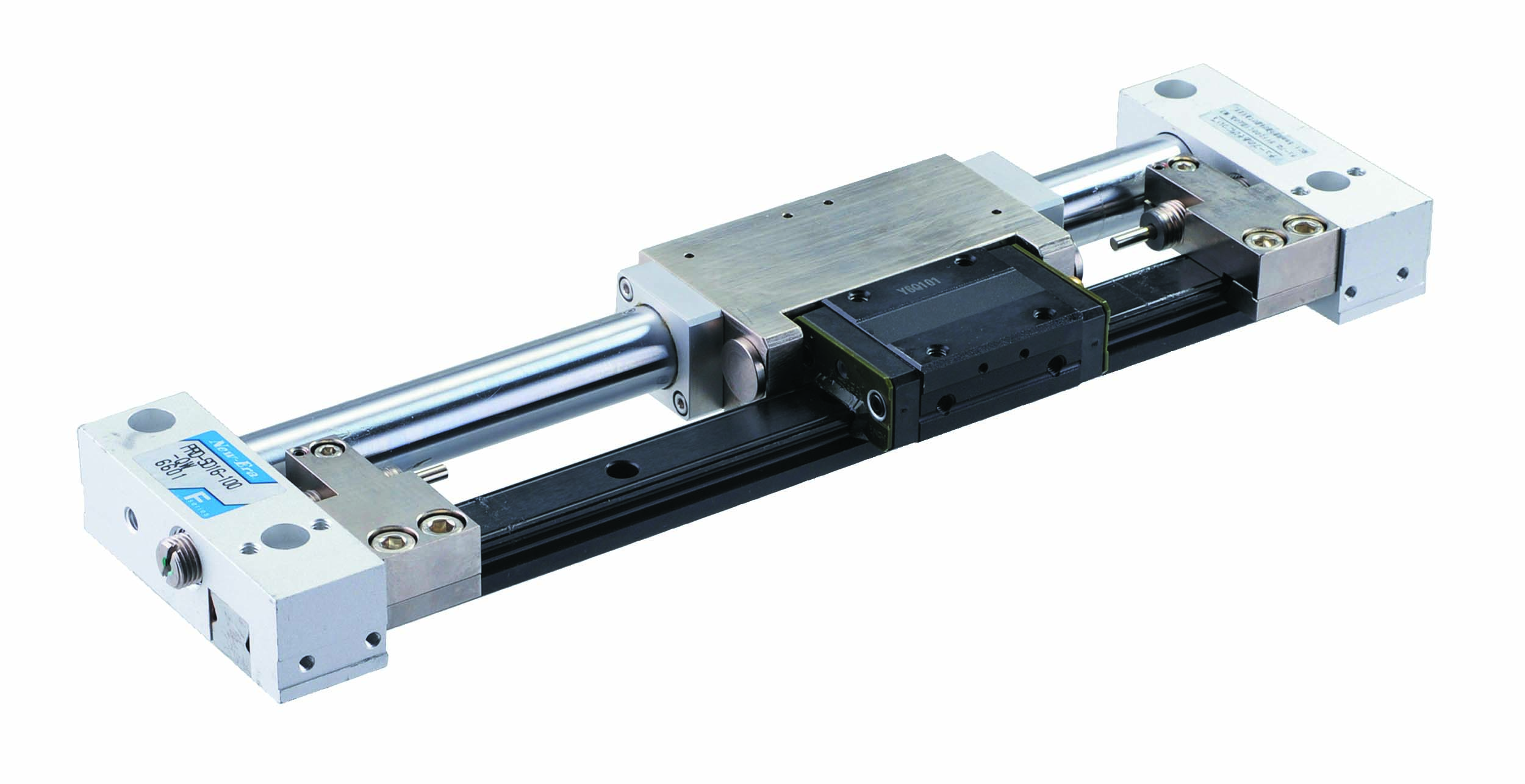

PRD-SD32-Stroke-QD
PRDS-SD32-Stroke-QD

Series	PRD
Type	Linear guide
Cylinder Bore[mm]	32mm	Operating Type	Double Acting
Extrusion Force	400.0N	Stroke	50～2000mm
Guide	Linear guide	Loading Work Piece Mass	15.00kg
Product Mass[g]	5785g～
Minimum Operating Speed	100mm/s	Maximum Operating Speed	500mm/s
Maximum Operating Cycle	-cpm	Operating Temperatura Range[°]	5〜60゜
Minimum Operating Pressure[MPa]	0.23MPa	Maximum Operating Pressure[MPa]	0.6MPa
Stroke Adjustment	Both Sides Shock Absorber	Switch	Available
Additional Function
Provided CAD data	PRD(S)-SD32-ストローク-QD PRD(S)-SD32-ストローク-QD-RD

PRD

Example Movie of Use

PRD-SD32-Stroke-QW
PRDS-SD32-Stroke-QW

Series	PRD
Type	Linear guide
Cylinder Bore[mm]	32mm	Operating Type	Double Acting
Extrusion Force	400.0N	Stroke	50～2000mm
Guide	Linear guide	Loading Work Piece Mass	15.00kg
Product Mass[g]	6875g～
Minimum Operating Speed	100mm/s	Maximum Operating Speed	500mm/s
Maximum Operating Cycle	-cpm	Operating Temperatura Range[°]	5〜60゜
Minimum Operating Pressure[MPa]	0.23MPa	Maximum Operating Pressure[MPa]	0.6MPa
Stroke Adjustment	Both Sides Shock Absorber	Switch	Available
Additional Function
Provided CAD data	PRD(S)-SD32-ストローク-QW PRD(S)-SD32-ストローク-QW-RD

PRD

Example Movie of Use

PRD-WG32-Stroke-QD
PRDS-WG32-Stroke-QD

Series	PRD
Type	Linear guide
Cylinder Bore[mm]	32mm	Operating Type	Double Acting
Extrusion Force	400.0N	Stroke	50～2000mm
Guide	Linear guide	Loading Work Piece Mass	30.00kg
Product Mass[g]	7505g～
Minimum Operating Speed	100mm/s	Maximum Operating Speed	500mm/s
Maximum Operating Cycle	-cpm	Operating Temperatura Range[°]	5〜60゜
Minimum Operating Pressure[MPa]	0.23MPa	Maximum Operating Pressure[MPa]	0.6MPa
Stroke Adjustment	Both Sides Shock Absorber	Switch	Available
Additional Function
Provided CAD data	PRD(S)-WG32-ストローク-QD PRD(S)-WG32-ストローク-QD-RD

PRD

Example Movie of Use

PRD-WG32-Stroke-QW
PRDS-WG32-Stroke-QW

Series	PRD
Type	Linear guide
Cylinder Bore[mm]	32mm	Operating Type	Double Acting
Extrusion Force	400.0N	Stroke	50～2000mm
Guide	Linear guide	Loading Work Piece Mass	30.00kg
Product Mass[g]	8585g～
Minimum Operating Speed	100mm/s	Maximum Operating Speed	500mm/s
Maximum Operating Cycle	-cpm	Operating Temperatura Range[°]	5〜60゜
Minimum Operating Pressure[MPa]	0.23MPa	Maximum Operating Pressure[MPa]	0.6MPa
Stroke Adjustment	Both Sides Shock Absorber	Switch	Available
Additional Function
Provided CAD data	PRD(S)-WG32-ストローク-QW PRD(S)-WG32-ストローク-QW-RD

PRD

Example Movie of Use

PRD-WR32-Stroke-QD
PRDS-WR32-Stroke-QD

Series	PRD
Type	Linear guide
Cylinder Bore[mm]	32mm	Operating Type	Double Acting
Extrusion Force	400.0N	Stroke	50～2000mm
Guide	Linear guide	Loading Work Piece Mass	20.00kg
Product Mass[g]	8135g～
Minimum Operating Speed	100mm/s	Maximum Operating Speed	500mm/s
Maximum Operating Cycle	-cpm	Operating Temperatura Range[°]	5〜60゜
Minimum Operating Pressure[MPa]	0.23MPa	Maximum Operating Pressure[MPa]	0.6MPa
Stroke Adjustment	Both Sides Shock Absorber	Switch	Available
Additional Function
Provided CAD data	PRD(S)-WR32-ストローク-QD PRD(S)-WR32-ストローク-QD-RD

PRD

Example Movie of Use

PRD-WR32-Stroke-QW
PRDS-WR32-Stroke-QW

Series	PRD
Type	Linear guide
Cylinder Bore[mm]	32mm	Operating Type	Double Acting
Extrusion Force	400.0N	Stroke	50～2000mm
Guide	Linear guide	Loading Work Piece Mass	20.00kg
Product Mass[g]	9525g～
Minimum Operating Speed	100mm/s	Maximum Operating Speed	500mm/s
Maximum Operating Cycle	-cpm	Operating Temperatura Range[°]	5〜60゜
Minimum Operating Pressure[MPa]	0.23MPa	Maximum Operating Pressure[MPa]	0.6MPa
Stroke Adjustment	Both Sides Shock Absorber	Switch	Available
Additional Function
Provided CAD data	PRD(S)-WR32-ストローク-QW PRD(S)-WR32-ストローク-QW-RD

PRD

Example Movie of Use

PRD-WA32-Stroke-QD
PRDS-WA32-Stroke-QD

Series	PRD
Type	Linear guide
Cylinder Bore[mm]	32mm	Operating Type	Double Acting
Extrusion Force	400.0N	Stroke	50～2000mm
Guide	Linear guide	Loading Work Piece Mass	30.00kg
Product Mass[g]	9965g～
Minimum Operating Speed	100mm/s	Maximum Operating Speed	500mm/s
Maximum Operating Cycle	-cpm	Operating Temperatura Range[°]	5〜60゜
Minimum Operating Pressure[MPa]	0.23MPa	Maximum Operating Pressure[MPa]	0.6MPa
Stroke Adjustment	Both Sides Shock Absorber	Switch	Available
Additional Function
Provided CAD data	PRD(S)-WA32-ストローク-QD PRD(S)-WA32-ストローク-QD-RD

PRD

Example Movie of Use

PRD-WA32-Stroke-QW
PRDS-WA32-Stroke-QW

Series	PRD
Type	Linear guide
Cylinder Bore[mm]	32mm	Operating Type	Double Acting
Extrusion Force	400.0N	Stroke	50～2000mm
Guide	Linear guide	Loading Work Piece Mass	30.00kg
Product Mass[g]	11345g～
Minimum Operating Speed	100mm/s	Maximum Operating Speed	500mm/s
Maximum Operating Cycle	-cpm	Operating Temperatura Range[°]	5〜60゜
Minimum Operating Pressure[MPa]	0.23MPa	Maximum Operating Pressure[MPa]	0.6MPa
Stroke Adjustment	Both Sides Shock Absorber	Switch	Available
Additional Function
Provided CAD data	PRD(S)-WA32-ストローク-QW PRD(S)-WA32-ストローク-QW-RD

PRD

Example Movie of Use

PRD-WH32-Stroke-QD
PRDS-WH32-Stroke-QD

Series	PRD
Type	Linear guide
Cylinder Bore[mm]	32mm	Operating Type	Double Acting
Extrusion Force	400.0N	Stroke	50～2000mm
Guide	Linear guide	Loading Work Piece Mass	30.00kg
Product Mass[g]	10735g～
Minimum Operating Speed	100mm/s	Maximum Operating Speed	500mm/s
Maximum Operating Cycle	-cpm	Operating Temperatura Range[°]	5〜60゜
Minimum Operating Pressure[MPa]	0.23MPa	Maximum Operating Pressure[MPa]	0.6MPa
Stroke Adjustment	Both Sides Shock Absorber	Switch	Available
Additional Function
Provided CAD data	PRD(S)-WH32-ストローク-QD PRD(S)-WH32-ストローク-QD-RD

PRD

Example Movie of Use

PRD-WH32-Stroke-QW
PRDS-WH32-Stroke-QW

Series	PRD
Type	Linear guide
Cylinder Bore[mm]	32mm	Operating Type	Double Acting
Extrusion Force	400.0N	Stroke	50～2000mm
Guide	Linear guide	Loading Work Piece Mass	30.00kg
Product Mass[g]	10735g～
Minimum Operating Speed	100mm/s	Maximum Operating Speed	500mm/s
Maximum Operating Cycle	-cpm	Operating Temperatura Range[°]	5〜60゜
Minimum Operating Pressure[MPa]	0.23MPa	Maximum Operating Pressure[MPa]	0.6MPa
Stroke Adjustment	Both Sides Shock Absorber	Switch	Available
Additional Function
Provided CAD data	PRD(S)-WH32-ストローク-QW PRD(S)-WH32-ストローク-QW-RD

PRD

Example Movie of Use
