DDH-203

Slim and compact body (Thickness:42mm)
Powerful continuous output (back-up output)
Interlock output with ACC (key switch)
High conversion efficiency by switching syste
Water proof

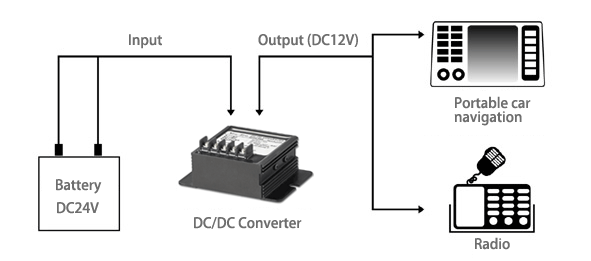

DDH-203

Click To Enlarge Image

Product Specification

Model DDH-203
Rated input voltage DC24V(DC20V~DC32V)
Starting voltage more than DC18V
Rated output 12V MAIN DC13.5V±1V
Voltage 12V ACC DC13.5V±1V
Max. output MAIN (incl. backup) 3A
Current 12V ACC 3A Total: 3A
No-load current ACC
12mA at ON 5mA at OFF
Conversion efficiency approx. 90%
Protection circuit Protection against reverse input connection
Protection against output over current
(Drooping characteristic)
(Stop by output vol. less than 7.5V / Reset by ACC switch)
Protection against input output reverse connection
Operating temp. range -30℃~60℃
Storing temp. range -40℃~85℃
Anti-vibration 8.3~400Hz 6.8G
Circuit mode Switching (PWM) system (noninsulation)
Product dimensions 101.5(W)X42(H)X73(D)mm
Product weight 300g
Input-output terminal M3.5
