Gripper Search Results

• 8 results found. ( 1~8 to Showing )

• HP04FR-8A

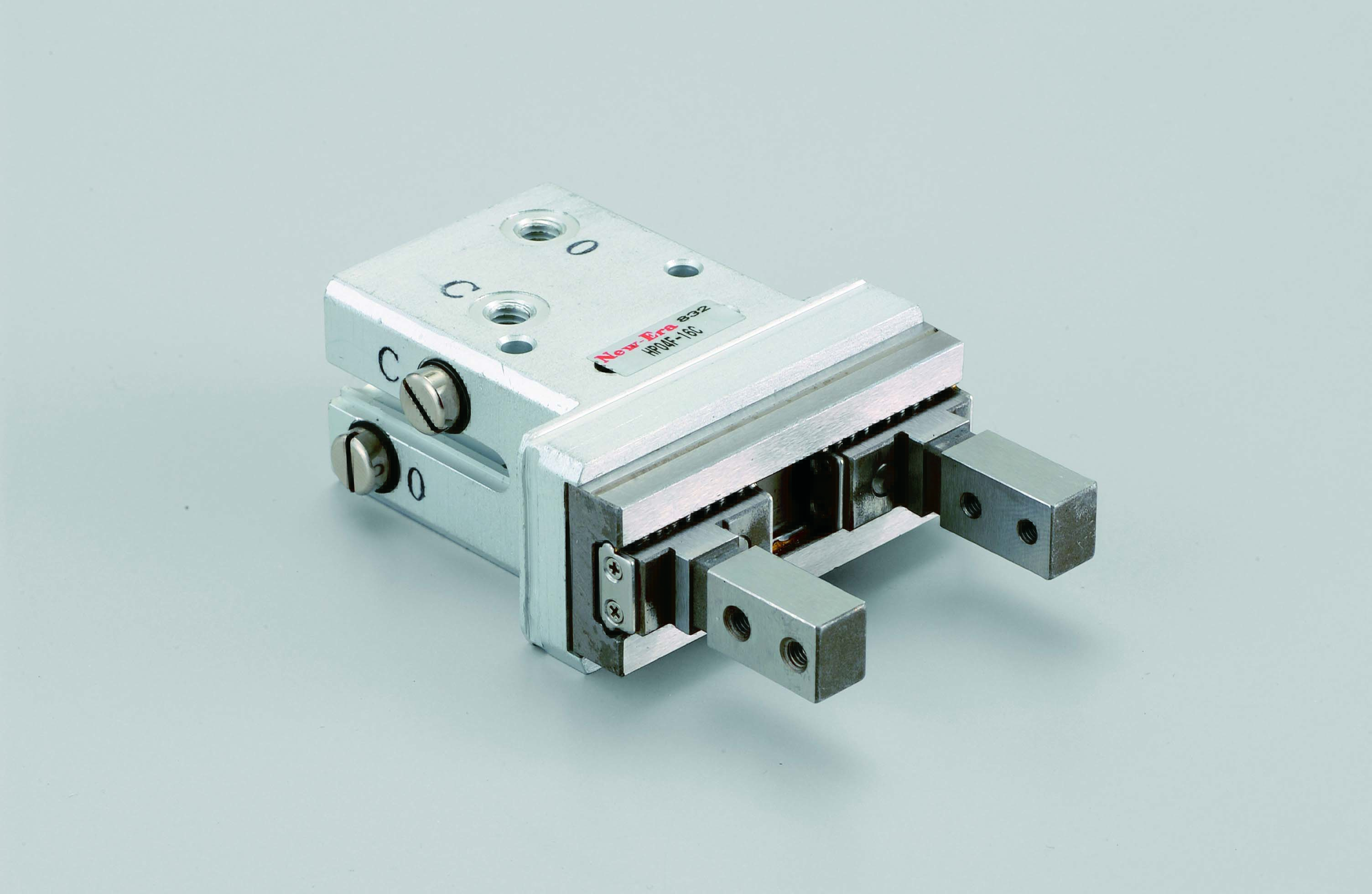

  Series	HP04FR
  Open/Close Type	Parallel Gripper
  Cylinder Bore[mm]	8mm	Number of Lever	2
  Operating Type	Single Acting Normally Open	Gripping Force(Closing Force) *Only one lever	4.5N
  Stroke	4.0mm	Product Mass[g]	28g～
  Operating Temperatura Range[°]	0°
  Switch	Availabl	Dust Proof Cover	Availabl
  Additional Function	-
  Provided CAD data	HP04FR-8A HP04FR-8A-J



  Catalog PDF

  DXF

  PARASOLID

  STEP

• HP04FR-8C

  Series	HP04FR
  Open/Close Type	Parallel Gripper
  Cylinder Bore[mm]	8mm	Number of Lever	2
  Operating Type	Double Acting	Gripping Force(Closing Force) *Only one lever	6.5N
  Stroke	4.0mm	Product Mass[g]	27g～
  Operating Temperatura Range[°]	0°
  Switch	Availabl	Dust Proof Cover	Availabl
  Additional Function	-
  Provided CAD data	HP04FR-8C HP04FR-8C-J



  Catalog PDF

  DXF

  PARASOLID

  STEP

• HP04FR-10A

  Series	HP04FR
  Open/Close Type	Parallel Gripper
  Cylinder Bore[mm]	10mm	Number of Lever	2
  Operating Type	Single Acting Normally Open	Gripping Force(Closing Force) *Only one lever	7.2N
  Stroke	6.5mm	Product Mass[g]	91g～
  Operating Temperatura Range[°]	0°
  Switch	Availabl	Dust Proof Cover	Availabl
  Additional Function	-
  Provided CAD data	HP04FR-10A HP04FR-10A-J



  Catalog PDF

  DXF

  PARASOLID

  STEP

• HP04FR-10C

  Series	HP04FR
  Open/Close Type	Parallel Gripper
  Cylinder Bore[mm]	10mm	Number of Lever	2
  Operating Type	Double Acting	Gripping Force(Closing Force) *Only one lever	10.0N
  Stroke	6.5mm	Product Mass[g]	90g～
  Operating Temperatura Range[°]	0°
  Switch	Availabl	Dust Proof Cover	Availabl
  Additional Function	-
  Provided CAD data	HP04FR-10C HP04FR-10C-J



  Catalog PDF

  DXF

  PARASOLID

  STEP

• HP04FR-16A

  Series	HP04FR
  Open/Close Type	Parallel Gripper
  Cylinder Bore[mm]	16mm	Number of Lever	2
  Operating Type	Single Acting Normally Open	Gripping Force(Closing Force) *Only one lever	23.0N
  Stroke	10.0mm	Product Mass[g]	181g～
  Operating Temperatura Range[°]	0°
  Switch	Availabl	Dust Proof Cover	Availabl
  Additional Function	-
  Provided CAD data	HP04FR-16A HP04FR-16A-J



  Catalog PDF

  DXF

  PARASOLID

  STEP

• HP04FR-16C

  Series	HP04FR
  Open/Close Type	Parallel Gripper
  Cylinder Bore[mm]	16mm	Number of Lever	2
  Operating Type	Double Acting	Gripping Force(Closing Force) *Only one lever	29.0N
  Stroke	10.0mm	Product Mass[g]	180g～
  Operating Temperatura Range[°]	0°
  Switch	Availabl	Dust Proof Cover	Availabl
  Additional Function	-
  Provided CAD data	HP04FR-16C HP04FR-16C-J



  Catalog PDF

  DXF

  PARASOLID

  STEP

• HP04FR-20A

  Series	HP04FR
  Open/Close Type	Parallel Gripper
  Cylinder Bore[mm]	20mm	Number of Lever	2
  Operating Type	Single Acting Normally Open	Gripping Force(Closing Force) *Only one lever	40.0N
  Stroke	14.0mm	Product Mass[g]	371g～
  Operating Temperatura Range[°]	0°
  Switch	Availabl	Dust Proof Cover	Availabl
  Additional Function	-
  Provided CAD data	HP04FR-20A HP04FR-20A-J



  Catalog PDF

  DXF

  PARASOLID

  STEP

• HP04FR-20C

  Series	HP04FR
  Open/Close Type	Parallel Gripper
  Cylinder Bore[mm]	20mm	Number of Lever	2
  Operating Type	Double Acting	Gripping Force(Closing Force) *Only one lever	49.0N
  Stroke	14.0mm	Product Mass[g]	370g～
  Operating Temperatura Range[°]	0°
  Switch	Availabl	Dust Proof Cover	Availabl
  Additional Function	-
  Provided CAD data	HP04FR-20C HP04FR-20C-J



  Catalog PDF

  DXF

  PARASOLID

  STEP
